5018D
5018D
Bird

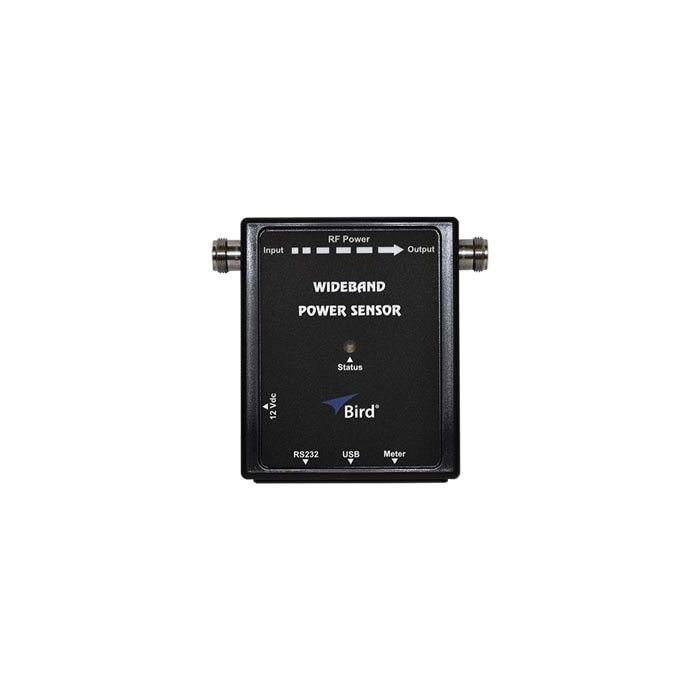

100mW - 25W Avg, 60W Peak Wideband RF Power Sensor
100mW - 25W Avg, 60W Peak Wideband RF Power Sensor
The 5018D RF Power Sensor never requires field calibration, only requires calibration once per year and is traceable to the National Institute of Standards and Technology (NIST). The WPS measures True Average Power, Peak Power, and Duty Cycle directly with exceptional accuracy and uses these precise measurements to calculate a wide range of other important factors, such as VSWR, Return Loss, Reflection Coefficient, Crest Factor, Average Burst Power, and CCDF.
Included Accessories:
- User Manual
- VPM3 - Virtual Power Meter Software and Manual
- 10 ft. USB Cable
Note:
The asterisk (*) displayed in the Product Specifications indicates (for temperatures above 35°C or below 15°C add 3.0% to stated accuracies) - this includes the entire "Accuracy-Peak Envelope Power" spec as well.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Manufacturer | Bird |
| Certificates | CE EMC EN 61326-1-2006 |
| Impedance Ohm | 50.0000 |
| Accuracy - Peak Envelope Power | burst width > 200 μs: ± 7% of reading, + 0.05 W 1 μs < burst width < 200 μs: ± 10% of reading, + 0.10 W 0.5 μs < burst width < 1 μs: ± 15% of reading, + 0.10 W burst width < 0.5 μs: ± 20% of reading, + 0.10 W |
| Average Power | Average Forward Power Range: 100 mW to 25 Watts Avg, 60 Watts Peak *Accuracy, Average Forward Power: ± 4% of reading, + 0.008 W Minimum Forward Power for Reflected Measurement: 0.1W Return Loss: 0.0 to 23 dB VSWR: 1.15 to 99.9 |
| Burst Average Power | Burst Average Forward Power Range: .7 W to 25 Watts Avg Burst Width: 1 μs to 5 ms Repetition Rate: 5 Hz, Min Duty Cycle (D): .002 to 1.0 *Accuracy, Burst Average Power: ± 6% of reading, + 0.008 Watts |
| Complementary cumulative distribution function | CCDF Measurement Range: 0.1 to 100% Threshold Measurement Range: 0.7 to 25 W Measurement Uncertainty: ± 2% *Level Set Accuracy: As Peak Envelope Power Accuracy + 2.0% |
| Crest factor | Crest Factor Measurement Range: 25 mW to 25 Watts *Accuracy, Crest Factor: Linear Sum of Peak and Average Power Accuracies |
| Directivity (dB) | 30 dB up to 3.0 GHz 28 dB from 3.0 to 4.0 GHz |
| Frequency Range | 150 MHz to 4.0 GHz |
| Insertion Loss | <0.05 dB from 0.15 to 1.0 GHz <0.1 dB from 1 to 4 GHz |
| Insertion VSWR | <1.05 from 0.15 to 2.5 GHz <1.10 from 2.5 to 4 GHz |
| Peak envelope power range | 0.7 - 60 W |
| Power range | 100 mW to 25 Watts Avg. 60 Watts Peak |
| Connectors | N Female (Both) |
| Temperature Range | Operating -10 °C to +50 °C (+14 °F to +122 °F) Storage -40 °C to +80 °C (-40 °F to +176 °F) |
| Power Supply | USB Port: less than one low-power USB load DC Input Connector: 7-18 VDC at less than 0.1A |
| Dimensions | 4.8 in x 4.6 in x 1.3 in (122 mm x 117 mm x 33 mm) |
| Interface | DPM Interface: DB9 proprietary interface, PC Interface (1): RS-232, 9600 Baud, no parity, 8 data bits, 1 stop bit, DB9, PC Interface (2): USB 2.0 Type B |
