Software-defined instruments from Liquid Instruments replace a bench of test equipment with one reconfigurable, FPGA-based device. Moku:Go, Moku:Pro and Moku:Delta run instruments including an oscilloscope, spectrum analyser, waveform generator, lock-in amplifier, phasemeter and PID controller. Choose a Base Suite or Full Suite Bundle, add instruments later as upgrades, and run two to eight at once in Multi-instrument Mode. Deploy your own FPGA code with Moku Compile or automate tests in Python, MATLAB or LabVIEW.
Software Defined Instruments
Software-defined instruments from Liquid Instruments replace a bench of test equipment with one reconfigurable, FPGA-based device. Moku:Go, Moku:Pro and Moku:Delta run instruments including an oscilloscope, spectrum analyser, waveform generator, lock-in amplifier, phasemeter and PID controller. Choose a Base Suite or Full Suite Bundle, add instruments later as upgrades, and run two to eight at once in Multi-instrument Mode. Deploy your own FPGA code with Moku Compile or automate tests in Python, MATLAB or LabVIEW.
Liquid Instruments Product Range:
Compare Liquid Instrument's Hardware platforms
Precision instruments. One configurable platform.
Four software-defined hardware platforms designed to bring flexibility to your lab with the specs required. Compare specifications to decide which hardware platform will best suit your lab, company or classroom.

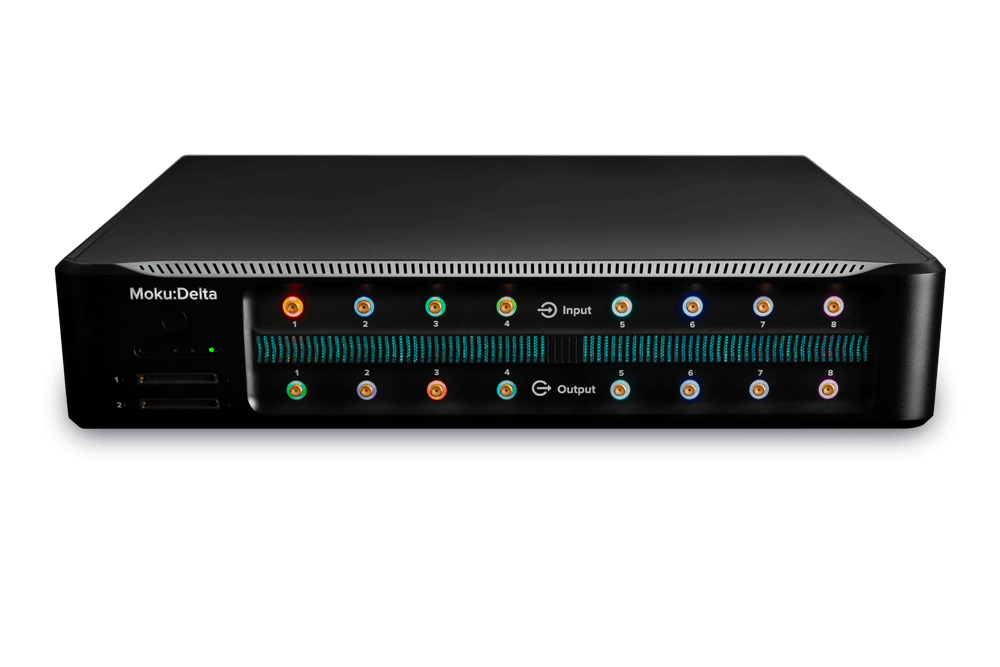

Moku:Delta

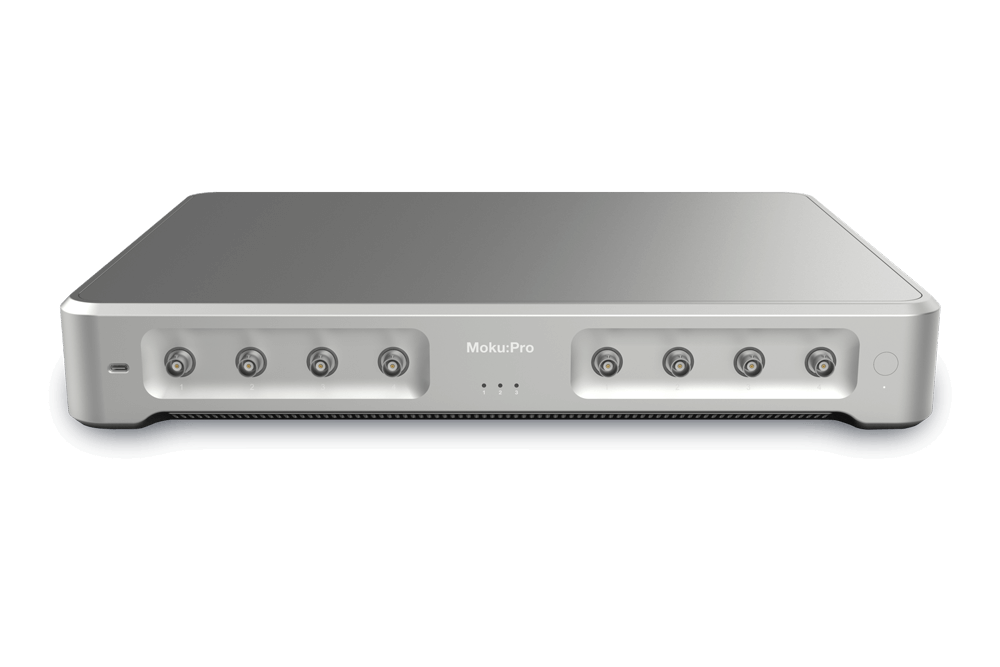

Moku:Pro

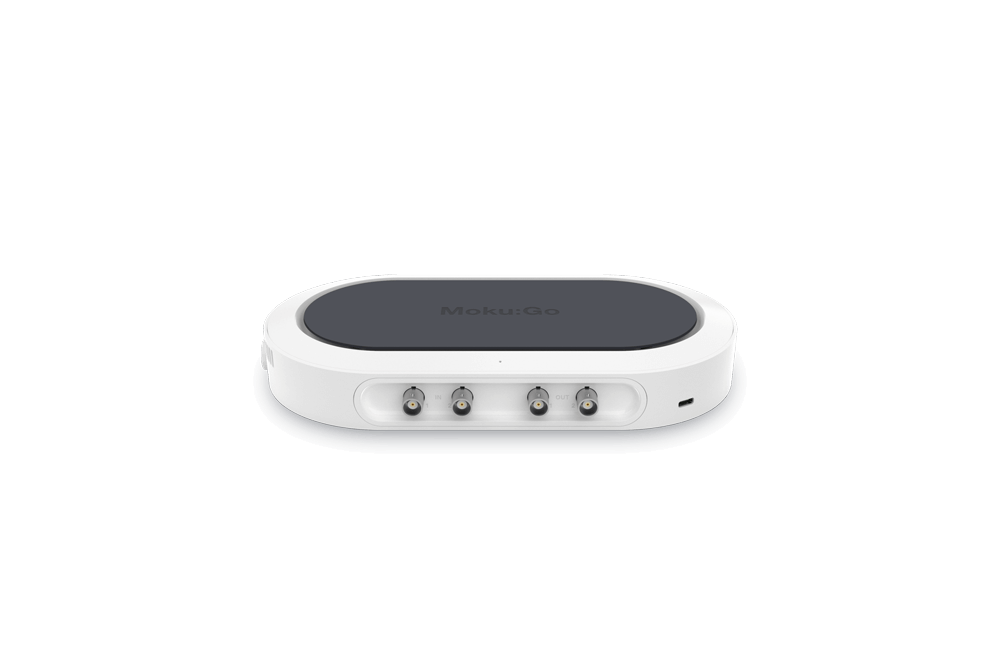

Moku:Go
Technical Specifications:
Moku:Delta |
Moku:Pro |
Moku:Go |
Analogue inputs |
||
|
Eight 14-bit+20-bit, 5 GSa/s |
Four 10-bit+18-bit, up to 5 GSa/s |
Two 12-bit, 125 MSa/s |
|
2 GHz |
600 MHz |
30 MHz |
|
AC or DC coupling with 50 Ω or 1 MΩ input impedance |
AC or DC coupling with 50 Ω or 1 MΩ input impedance |
AC or DC coupling with 1 MΩ input impedance |
|
Up to ±20 V |
Up to ±20 V |
Up to ±25 V |
Analogue outputs |
||
|
8 |
4 |
2 |
|
2 GHz |
500 MHz |
20 MHz |
|
± 500 mV up to 2 GHz into 50 Ω ± 5 V up to 100 MHz into 50 Ω |
± 5 V into 50 Ω |
± 5 V maximum output range |
|
1 ppb OCXO |
300 ppb |
25 ppm |
|
32-channel Dedicated TTL trigger port |
Dedicated TTL trigger port |
16-channel, 125 MSa/s |
|
N/A |
N/A |
Up to four channels |
|
Yes, 2U height |
Yes, 1U height |
No |
|
1 TB SSD |
240 GB SSD |
8 GB |
|
USB-C, 10/100 MHz reference in and out, GPSDO, 100 Gb QSFP+, two 10 Gb SFP+, 1 Gb Ethernet, Trigger, Removable Wifi dongle |
USB-C, 10 MHz reference in and out, Ethernet port (10/100/1000 Base-T), Trigger |
USB-C, Optional Ethernet port (10/100 Base-T), Kensington lock port |
Size and Weight |
||
|
3.4 in / 8.7 cm |
2.8 in / 7 cm |
1.5 in / 3.8 cm |
|
17.3 in / 44 cm |
17.3 in / 44 cm |
9.4 in / 24 cm |
|
14.6 in / 37.1 cm |
13 in / 33 cm |
5.1 in / 13 cm |
|
24.7 lb / 11.2 kg |
14.8 lb / 6.7 kg |
5.1 in / 13 cm |
Find the right Moku model for you
If you're unsure which Moku model you need, our team can help you choose the right platform and bundle. Get in touch for pricing, live demos and integrated instruments.
