WP-WiFi
WP-WiFi
Wavecontrol

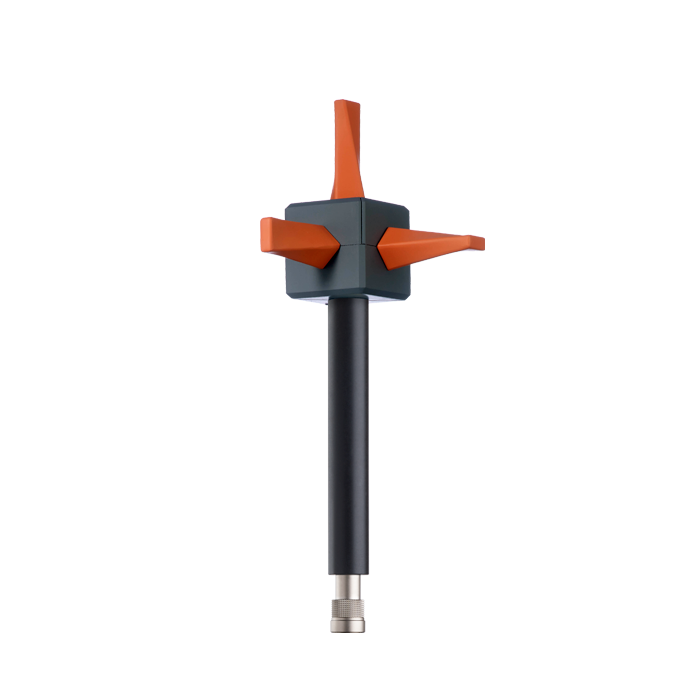

WP-WiFi field probe - band 2400-2500.
Capable of measuring E field band 2400-2500 selective and broadband the WPT-WiFi field probe is compatible with Wavecontrol’s SMP2 and MonitEM equipment.
Uses include:
Telecommunications
The WP-WiFi probe allows measurement of the electromagnetic field only generated by WiFi communications at 2.45 GHz, ignoring all other sources of radiation.
Uses include:
Telecommunications
The WP-WiFi probe allows measurement of the electromagnetic field only generated by WiFi communications at 2.45 GHz, ignoring all other sources of radiation.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Frequency Response | ± 0.95 dB |
| Frequency Range | WiFi 2.45 GHz band |
| Sensitivity | 0.04 V/m |
| Linearity | < ± 0.5 dB (0.2 - 50 V/m) |
| Resolution | 0.07 dB |
| Interband Attenuation | > 28 dB |
| Accessory Type | Probe |
| Probe Measurement Range | 0.04 – 65 V/m (RMS) |
| Calibration Period | 24 months (recommended) |
| Applications |
|
| Operating Temperature | - 30°C t° + 80°C |
| Dynamic Range | > 64 dB |
| Isotropic Deviation | < ± 1.7 dB |
| Dimensions | 28.5 x 10.5 x 10.5 cm |
| Calibration | ISO 17025 accredited (ILAC) |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
