Wavecontrol

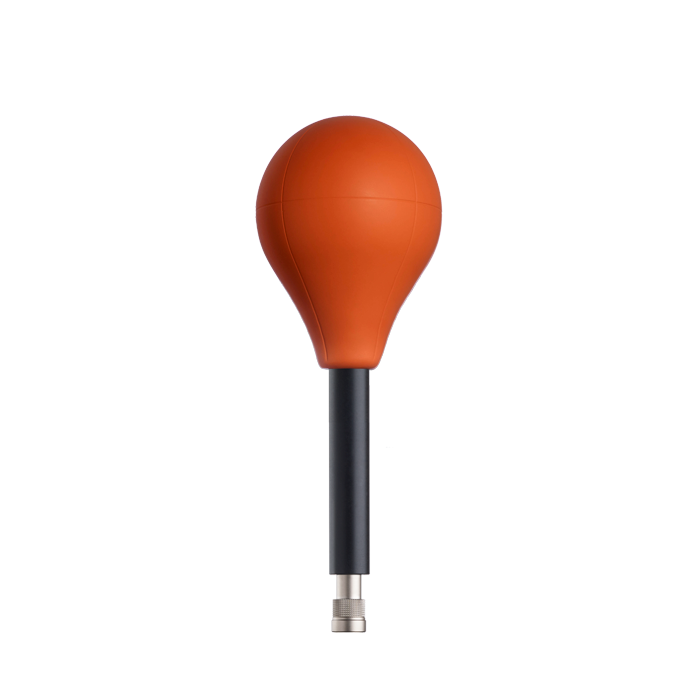

WPH60 field probe 300 kHz to 60 MHz
Capable of measuring H field from 300 kHz to 60 MHz broadband shaped the WPH60 field probe is compatible with Wavecontrol’s SMP2 and MonitEM equipment.
Uses include:
Telecommunications
Certification and audit of telecommunication services (GSM, 3G, LTE, TDT, AM, FM, WiFi, etc.).
Industry
Assessment of industrial processes for worker’s exposure protection.
Defence
Assessment of military sites and personnel exposure protection.
Labs/R&D
RF exposure protection of R&D and labs personnel.
Uses include:
Telecommunications
Certification and audit of telecommunication services (GSM, 3G, LTE, TDT, AM, FM, WiFi, etc.).
Industry
Assessment of industrial processes for worker’s exposure protection.
Defence
Assessment of military sites and personnel exposure protection.
Labs/R&D
RF exposure protection of R&D and labs personnel.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Frequency Response |
± 0.5 dB (500 kHz - 30 MHz) - 3 / + 0.5 (300 kHz - 60 MHz) |
| Frequency Range | 300 kHz - 60 MHz |
| Sensitivity | 0.018 A/m |
| Linearity | ± 1 dB (0.04 to 4 A/m) |
| Accessory Type | Probe |
| Type of Frequency Response | Flat |
| Probe Measurement Range |
0.018 - 20 A/m (CW) 0.018 - 1 A/m (RMS) |
| Axial Isotropy | ± 1 dB |
| Calibration Period | 24 months (recommended) |
| Damage Level | 35 A/m (350 A/m Peak 1 μs, period 100 μs) |
| Applications |
|
| Operating Temperature | - 10 °C t° 50 °C |
| Dynamic Range | 60 dB |
| Sensor Type |
Isotropic RMS diode technology |
| Dimensions | 270 mm x 90 mm Ø |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
