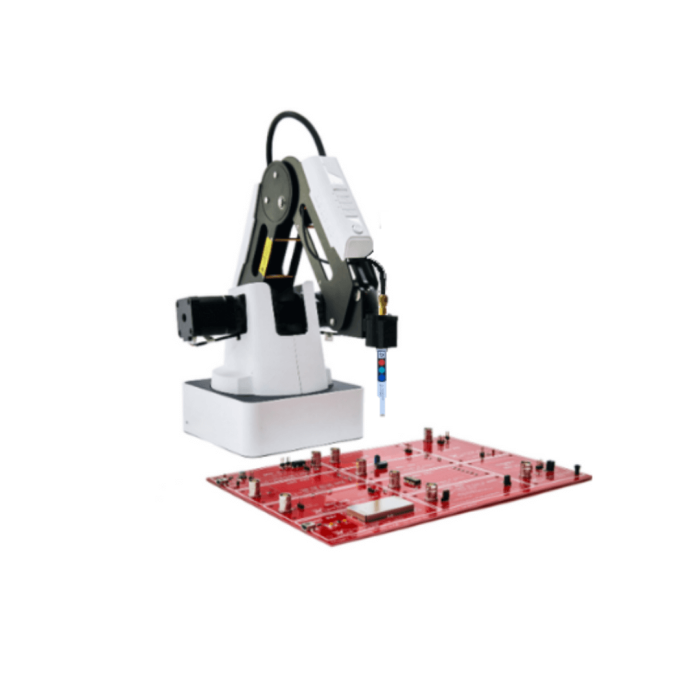

EMProbe - Precision Robotic Arm for Controlling Near-Field Magnetic Probes
EMC Probes with 3D Precision Accuracy
EMC/EMI Issue testing made simple, precise, and efficient with cutting-edge 3D precision technology.
Designed to support high-density board designers, the EMProbe leverages off-the-shelf, hand-held probes to seamlessly visualise the root causes of potential EMC and EMI problems. Whether you're conducting pre- or post-EMC compliance testing, EMProbe enables engineers to quickly and accurately pinpoint design flaws that could lead to interference or non-compliance.
With its intuitive 3D visualisation capabilities, EMProbe offers a comprehensive view of electromagnetic field distributions, providing actionable insights into critical issues that might otherwise go unnoticed. This makes it an invaluable tool for ensuring optimal design performance, reducing compliance risks, and accelerating the path to market.
Key Features
- Physical Resolution: 0.2mm
- Scanning area: 320x250 mm, 180deg
- Optional Extended Rail – 900x250 mm, 180deg
- Y.I.C. NFP Set: up to 13GHz probes
- 1YR EMViewer Subscription including upgrades, support & hardware warranty.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Capability |
Spectral scan, spatial scan, peak-hold, continuous scanning, spectral and spatial comparison, scripting, limit lines, and report generation. |
| Supported Operating System | Windows 10® |
| Supported CAD Overlays |
Picture in JPEG format. Standard Gerber© RS274x format and HPGL format. |
| Spatial Resolution | High Resolution: 7.5mm to 0.2mm |
| Frequency Accuracy Of Peaks | Peak marking accuracy of the Spectrum Analyzer |
| Probe To Probe Uniformity | Dependent on the selected probe. |
| Maximum Radiated Power Load | Dependent on the Spectrum Analyser and the probe performance |
| Operating Temperature | From 15⁰ C to 40⁰ C (continuous spectral and spatial scans at 50 MHz) |
| Supported Analysers | All SCPI based Spectrum Analysers will be added via EMViewer software. |
| Weight | 3.40Kg (Excluding cables and the adaptor) |
| Max Frequency Coverage | 18GHz with the supplied Y.I.C. NF Probes |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
