LANTIME M400
LANTIME M400
Meinberg

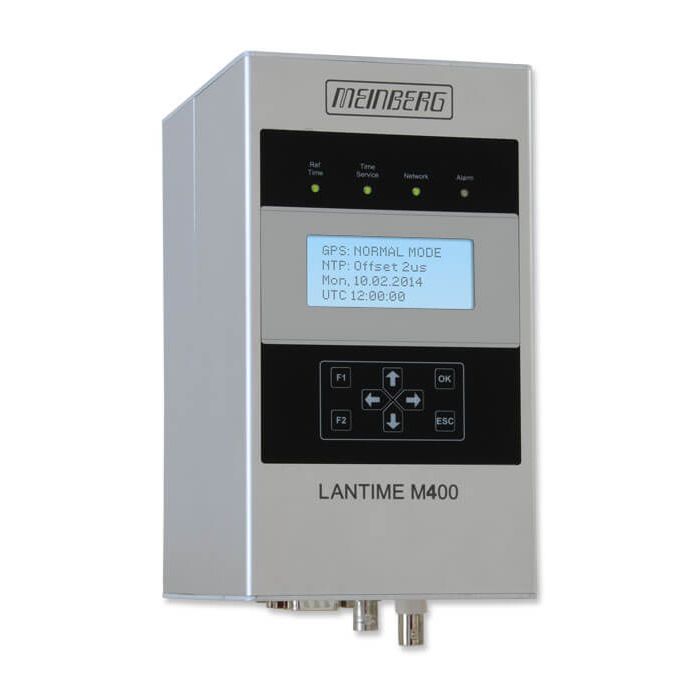

Rail Mount NTP Time Server with Meinberg reference receiver
The LANTIME M400 Time Server offers unparalleled flexibility and versatility and provides accurate time to your network in a compact and full-featured DIN railmount package for industrial applications such as power generation, transmission and distribution (substation automation), process control and industrial automation systems. The M400 includes an LC-Display and keypad and an extremely broad range of available options.
The LANTIME M400 is available with an integral receiver as well as an IRIG timecode reader and can be customized with a lot of different options to deliver exactly the feature set that is required for a certain application/environment.
Ultra-compact Form Factor
The ultra-compact form factor enables this product to become the ideal time and frequency source in installations where every millimetre counts. With up to 5 network ports, this NTP appliance offers the highest port density.
Simple System Configuration
As with most LANTIME M-Series models, a large LC-Display showing the state of the internal GPS receiver and the NTP/PTP subsystem is combined with three bicolour LEDs (green/red) that indicate the status of the three main components: Reference Time (e.g. GPS or GLONASS), Time Synchronisation Service (NTP/PTP) and Network (Link status). A fourth red LED is labelled ALARM and can be configured to signal any event that is covered by the notification handling routines.
Oscillator Options
The LANTIME M400 GPS is equipped with a high precision oscillator "TCXO" (look at oscillator options for details). The oscillator determines the holdover characteristics (e.g. when a reference source signal like GPS is disturbed or jammed). For applications with higher stability/holdover requirements, there are several oscillator options available (up to "OCXO HQ").
Modular System Architecture
Because of its modular system architecture, it is possible to equip a LANTIME M400 time server with a number of different reference time sources. Optionally several additional frequency, serial string and pulse outputs are available as well as power supplies for additional input voltage ranges.
In addition to the standard electrical interfaces, a lot of output signals can be delivered on optical ports, too.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Manual URL | https://www.meinbergglobal.com/download/docs/manuals/english/ltos_6-24.pdf |
| Technical Support | Meinberg offers free lifetime technical support via telephone or e-mail. Additionally, APC's own team of time synchronisation specialists are available for first line technical support. |
| Power Consumption | 30W |
| Form Factor | Fischer aluminium housing for DIN mounting rail |
| Relative Humidity | Max. 85% |
| RoHS | Yes |
| Further information |
The LANTIME M400 is available with an integral receiver as well as an IRIG timecode reader and can be customized with a lot of different options to deliver exactly the feature set that is required for a certain application/environment.
Ultra compact Form Factor The ultra compact form factor enables this product to become the ideal time and frequency source in installations where every millimetre counts. With up to 5 network ports, this NTP appliance offers highest port density. Simple System Configuration As with most LANTIME M-Series models, a large LC-Display showing the state of the internal GPS receiver and the NTP/PTP subsystem is combined with three bicolour LEDs (green/red) that indicate the status of the three main components: Reference Time (e.g. GPS or GLONASS), Time Synchronisation Service (NTP/PTP) and Network (Link status). A fourth red LED is labelled ALARM and can be configured to signal any event that is covered by the notification handling routines. Oscillator Options The LANTIME M400 GPS is equipped with a high precision oscillator "TCXO" (look at oscillator options for details). The oscillator determines the holdover characteristics (e.g. when a reference source signal like GPS is disturbed or jammed). For applications with higher stability/holdover requirements there are several oscillator options available (up to "OCXO HQ"). Modular System Architecture Because of its modular system architecture it is possible to equip a LANTIME M400 time server with a number of different reference time sources. Optionally several additional frequency-, serial string- and pulse outputs are available as well as power supplies for additional input voltage ranges. In addition to the standard electrical interfaces a lot of output signals can be delivered on optical ports, too. |
| Control elements | Eight push buttons to set up basic network parameters and to change receiver settings |
| Status info |
Four bicolour LEDs showing the status of:
|
| Frequency Outputs |
10 MHz via female BNC connector, TTL into 50 Ohm. Accuracy depends on the oscillator (standard: TCXO). |
| Pulse outputs | Pulse Per Second (PPS), TTL level, pulse width: 200ms |
| Accuracy of Pulse Outputs |
Depends on the oscillator option:
|
| Network Interface | 1 x 10/100 MBit with RJ45 (up to 4 additional LAN interfaces possible) |
| Universal Serial Bus (USB) Ports |
1x USB Port in front panel:
|
| Data format of interfaces |
COM 0:
|
| CPU |
|
| Operating System of the SBC | Linux with nano kernel (incl. PPSkit) |
| Network protocols OSI Layer 4 (transport layer) |
|
| Network protocols OSI Layer 7 (application layer) |
|
| Internet Protocol (IP) |
|
| Network Autoconfiguration Support |
|
| Network Time Protocol (NTP) |
|
| Parallel Redundancy Protocol (PRP) | PRP (IEC 62439-3) |
| Time Protocol (TIME) | Time Protocol (RFC 868) |
| Daytime Protocol (DAYTIME) | Daytime Protocol (RFC 867) |
| IEC 61850 | Synchronisation of IEC 61850 compliant devices by using SNTP |
| Hypertext Transfer Protocol (HTTP) | HTTP/HTTPS (RC 2616) |
| Secure Shell (SSH) |
|
| Telnet | Telnet (RFC 854-RFC 861) |
| Simple Network Management Protocol (SNMP) |
|
| Scope of supply | Included in delivery is a Meinberg outdoor antenna incl. mounting kit, pre-assembled antenna cable (except MRS, TCR and RDT models) and product documentation on USB storage. |
| Firmware Updates | Firmware is field-upgradeable, updates can be installed directly from the unit or via a remote network connection. Software updates are provided free of charge for the lifetime of your Meinberg product. |
| WEEE status of the product | This product is handled as a B2B category product. In order to secure a WEEE compliant waste disposal it has to be returned to the manufacturer. Any transportation expenses for returning this product (at its end of life) have to be incurred by the end user, whereas Meinberg will bear the costs for the waste disposal itself. |
| Alarm Output | Synchronous state of the module, relay output (changeover contact) |
| Supported Time String Formats |
|
| Key Features |
|
| Operating Temperature | 0 - 50°C |
| Interface | Single serial RS-232 interface (no serial interface in case of an internal time code receiver). |
| Power Supply |
Standard: 100-240 V AC (50/60 Hz) / 100-200 V DC
100-200 V DC, 24 V DC and 24-48 V DC Redundant power supply combinations are also available. |
| Dimensions | 105 x 189 x 146mm |
| Display | LC-Display, 4 x 16 characters |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
