LS2003J-2RE

LS2003J-2RE

LOCOSYS Technology

A complete standalone GPS smart antenna module

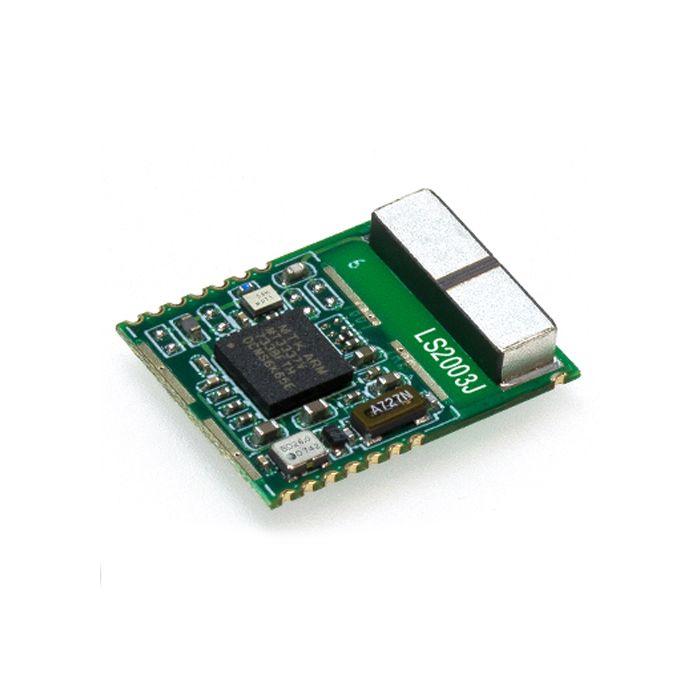

main product photo

The LOCOSYS LS2003J-2RE is a complete standalone GPS smart antenna module, powered by a MediaTek GPS chip. It can provide users with superior sensitivity and performance in urban areas and dense foliage environments.

The module includes an embedded chip antenna and GPS receiver circuit. Ideal for tablet PCs, MID, PND and smartphones that are looking to integrate GPS functionalities.

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Key Features
  • Tiny size: 16.0x12.2x2.8mm
  • MediaTek high sensitivity solution
  • Supports 66-channel GPS
  • Fast TTFF at a low signal level
  • Built-in 12 multi-tone active interference canceller
  • Support Japan QZSS
  • Ultra-low power consumption
  • Fast TTFF at a low signal level
  • ±11ns high accuracy time pulse (PPS)
  • Indoor and outdoor multi-path detection and compensation
  • SMD type with stamp holes; RoHS compliant
  • IATF 16949 quality control
  • Support RTCM SC-104 Version-2.x
Power (mA) 23mA
Antenna Size 3.23 x 1.66 x 0.45mm
Operating Temperature -40 ~ 85°C
Interface UART
Memory ROM
Dimensions 16 x 12.2 x 2.8 mm
More Information
Attribute Value
Data Sheet Click here to view
