150-T Series
150-T Series
Bird

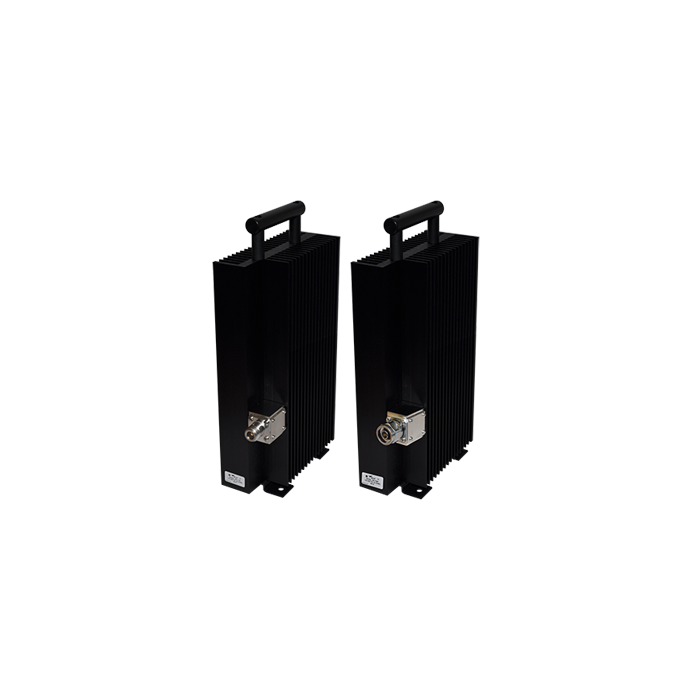

150 Watt, Convection-Cooled Dry Terminations
150-T Series, RF Terminations are world renowned for their high-quality, robust construction and conservative power ratings. The use of non-magnetic materials and plating provide safety when used in high magnetic fields such as MRI.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
150-T Series Specifications
- Avaliable with N or BNC Connectors
- Convection-Cooled
- Rugged Reliability provides years of trouble free use
- Compact size easily transportable benchtop design
| Attribute | Value |
|---|---|
| Manufacturer | Bird |
| Housing surface finish | Black Anodized Aluminum |
| VSWR and Frequency Range | DC to 1 GHz @ 1.10:1 max., 1 GHz to 2.4 GHz @ 1.25:1 max |
| Operating Position | Vertical |
| Cooling Type | Dry (Convection-Cooled) |
| Connectors | BNC, 7/16 DIN, N, TNC |
| Temperature Range | -40 to +40 °C |
| Dimensions | 10.9" x 2.6" x 6.8" (H x W x D), 276 x 66 x 173 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
