Keithley Instruments
10 kV Power Supply

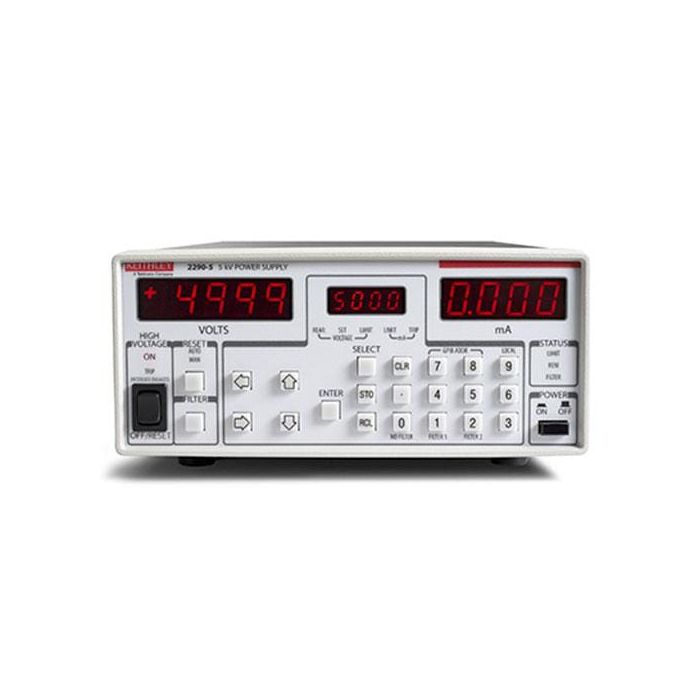

Series 2290 High Voltage Power Supplies facilitate high voltage device and material testing, as well as high energy physics experimentation. The 2290-10 10 kV Power Supply offers up to 10,000 V and has a 1 mA current capacity. These supplies measure both output voltage with 1V resolution and output current with 1 µA resolution. In addition to the voltage and current output displays, a third display shows one of four settings: output voltage, voltage limit, current limit, or current trip. These values can be set precisely with the front panel keypad.
The settings can also be programmed over the IEEE-4888 interface, or the output voltage can be set with an analogue control voltage.
Contact our team for stock availability and product options.
Discover Tektronix's factory service plans
Protect your investment and your uptime with Tektronix's service plans, review each plan and choose which is best for you.
| Attribute | Value |
|---|---|
| Key Features |
|
| Manufacturer Product Family | Keithley 2290 Series |
| Maximum Voltage | 10,000V |
| Maximum Current | 1mA |
| Power | 10 W |
| Outputs | Single Output |
| Applications |
|
