Keithley 2303 DC Power Supply | APC Technology Group

2303

2303

Keithley Instruments

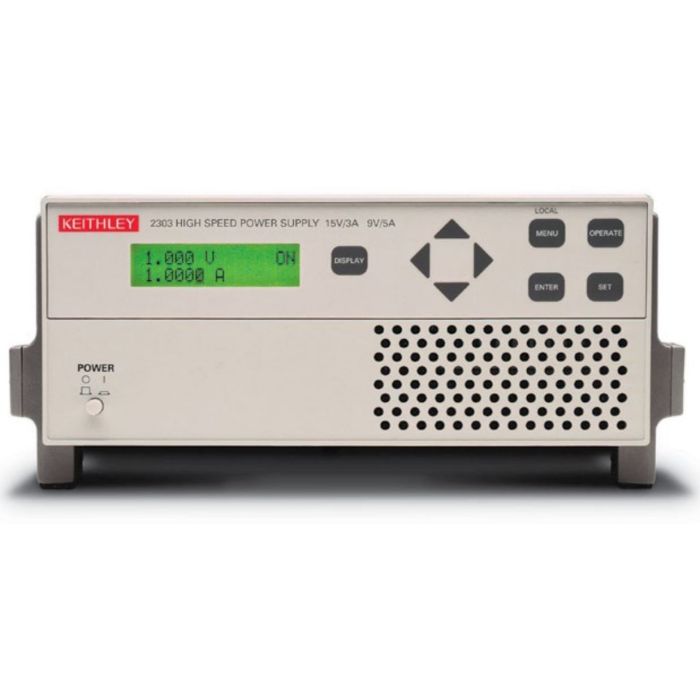

High Speed Precision Readback Power Supply (45W)

The Model 2303 Power Supply provides both voltage control and power consumption monitoring for automated testing of portable, battery-operated devices. This power supply is optimised for testing battery-operated, wireless communication devices such as cellular phones that undergo substantial load changes for very short time intervals.

These power supplies exhibit outstanding voltage stability during pulse load changes and can simultaneously measure load currents, even if they are short pulses. In addition, this family of power supplies can sink current and, thus, take on the characteristics of a discharged, rechargeable battery for testing chargers and charger-control circuitry.

Contact us for lead time

Contact our team for stock availability and product options.

Price £3,000.00

Discover Tektronix's factory service plans

Protect your investment and your uptime with Tektronix's service plans, review each plan and choose which is best for you.

More Information
Attribute Value
Key Features
  • 45W output (15V @ 3A, 9V @ 5A)
  • Sinks up to 2A
  • optimised for battery-powered device testing
  • Ultra-fast transient response to load changes
  • 5A continuous output
  • Pulse peak, average, and baseline current measurements
  • 100nA DC current sensitivity
Manufacturer Product Family Keithley 2300 Series
Maximum Voltage 15V
Maximum Current 5A
Power 45 W
Outputs Single Output
More Information
Attribute Value
Data Sheet Click here to view
