25-T Series
25-T Series
Bird RF

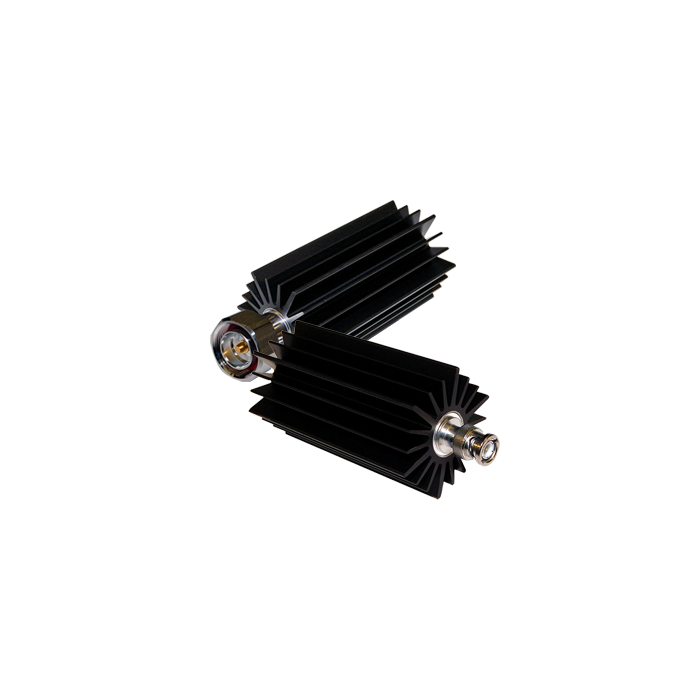

25 Watt, Convection-Cooled Dry Terminations
25-T Series, RF Terminations are world renowned for their high-quality, robust construction and conservative power ratings. The use of non-magnetic materials and plating provide safety when used in high magnetic fields such as MRI.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
25-T Series Specifications
- Wide variety of connectors
- Compact size easily transportable
- Rugged Reliability provides years of trouble free use
| Attribute | Value |
|---|---|
| Manufacturer | Bird |
| Housing surface finish | Black Anodized Aluminum |
| VSWR and Frequency Range | DC - 1 GHz @ 1.10:1 max., 1 GHz - 4 GHz @ 1.25:1 max. |
| Operating Position | Any |
| Cooling Type | Dry (Convection-Cooled) |
| Connectors | SMA, BNC, 7/16 DIN, N, TNC, 4.1/9.5 |
| Temperature Range | -40 to +40 °C |
| Dimensions | 4.7" L x 2.3" Dia. (with N-type connector), (119.4 x 58.5 mm) |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
