Keithley 2510 Keithley Optical SourceMeter Instruments

2510

Keithley Instruments

TEC SourceMeter

Skip to the beginning of the images gallery

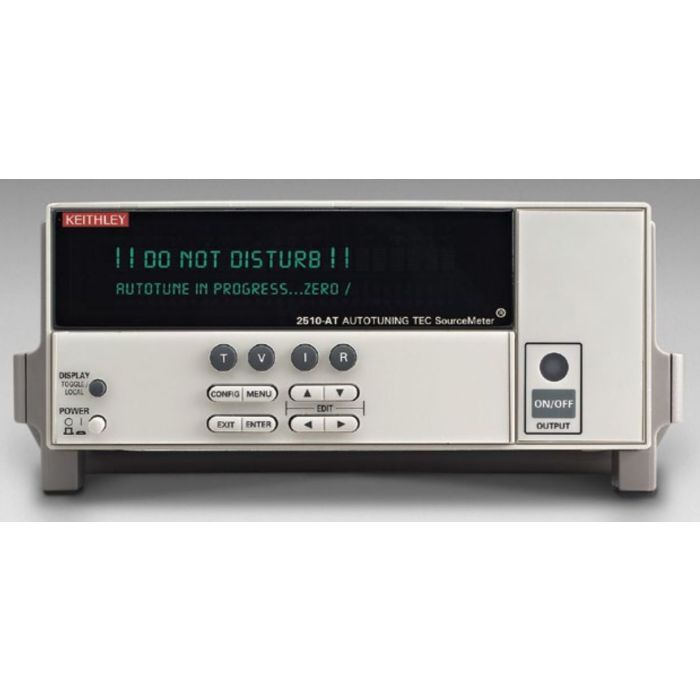

The Models 2510 and 2510-AT TEC SourceMeter SMU instruments enhance Keithley’s CW (Continuous Wave) test solution for high speed LIV (light-current-voltage) testing of laser diode modules. These 50W bipolar instruments were developed in close cooperation with leading manufacturers of laser diode modules for fiberoptic telecommunications networks. Designed to ensure tight temperature control for the device under test, the Model 2510 was the first in a line of highly specialised instruments created for telecommunications laser diode testing.

It brings together Keithley’s expertise in high speed DC sourcing and measurement with the ability to control the operation of a laser diode module’s Thermo-Electric Cooler or TEC (sometimes called a Peltier device) accurately.

Contact our team for stock availability and product options.

Price £6,960.00

Request a quote

Discover Tektronix's factory service plans

Protect your investment and your uptime with Tektronix's service plans, review each plan and choose which is best for you.

Find out more

[email protected]

+44 330 313 3220

Specifications

More Information
Attribute	Value
Manufacturer Product Family	Keithley Optical SourceMeter Instruments
Key Features	50W TEC Controller combined with DC measurement functions Fully digital P-I-D control Autotuning capability for the thermal control loop (2510-AT) Designed to control temperature during laser diode module testing Wide temperature setpoint range (–50°C to +225°C) and high setpoint resolution (±0.001°C) and stability (±0.005°C) Compatible with a variety of temperature sensor inputs—thermistors, RTDs, and IC sensors Maintains constant temperature, current, voltage, and sensor resistance AC Ohms measurement function verifies integrity of TEC Measures and displays TEC parameters during the control cycle 4-wire open/short lead detection for thermal feedback element IEEE-488 and RS-232 interfaces Compact, half-rack design
Maximum Voltage	10 V
Applications	Laser diode modules IR charge-coupled device (CCD) arrays and charge-injection devices (CID) Cooled photodetectors Thermal-optic switches Temperature controlled fixtures
Maximum Current	5A
Power	50 W
Series	Optical SMU for Laser Diode
Channels	1
