3170
3170
ETS-Lindgren

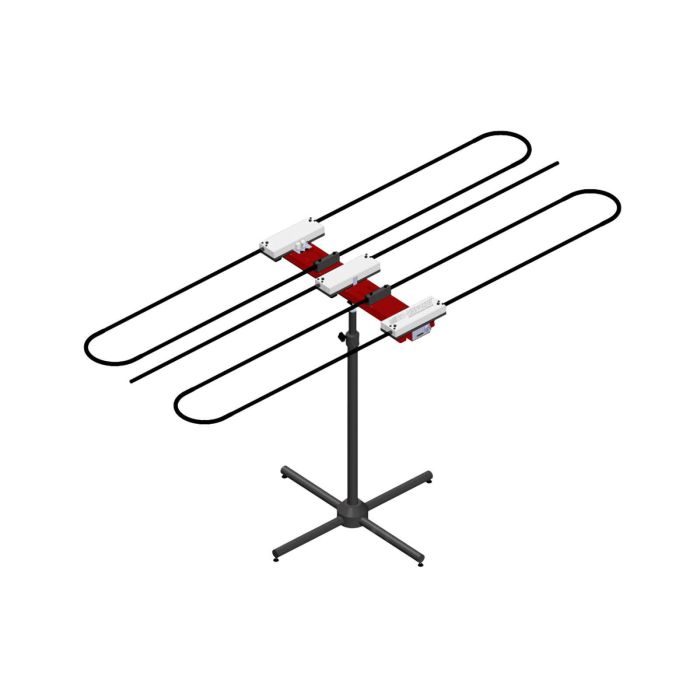

Intell-I-Tune Log Periodic Antenna
The Model 3170 Intell-I-Tune Antenna Solution achieves true resonance across 30–200 MHz, delivering 200 V/m from the fundamental frequency to meet MIL-STD-461G/H RS103, DO-160, and ISO 11452-2 requirements.
Its patented auto-tuning system reduces harmonics, lowers amplifier power needs, and enables fully automated operation for greater accuracy, efficiency, and throughput in EMC testing.
Key Features
- 30 MHz to 200 MHz frequency range
- True resonance at every frequency via stepper motor-driven element tuning
- 200 V/m at 1 meter from the fundamental frequency
- Fully automated operation with no technician intervention required
- Supports MIL-STD-461G/H RS103, DO-160, and ISO 11452-2
- Reduces amplifier power requirements
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Dimensions | 101.7 cm x 276.9 cm x 12.5 cm (D x W x H) |
| Weight | 15.9 kg (35.0 lb) |
| Maximum Frequency | 200 MHz |
| Minimum Frequency | 30 MHz |
| Frequency Range | 30 MHz – 200 MHz |
| Gain | ~3 to 6 dBi |
| VSWR | <3:1 max (typically 1.5:1) |
| Max Input Power | 2500 W |
| Impedance | 50 Ω |
