3D Plus

1.8V, 6 Gbit DDR2 SDRAM organised as 128M x48, based on 128M x8

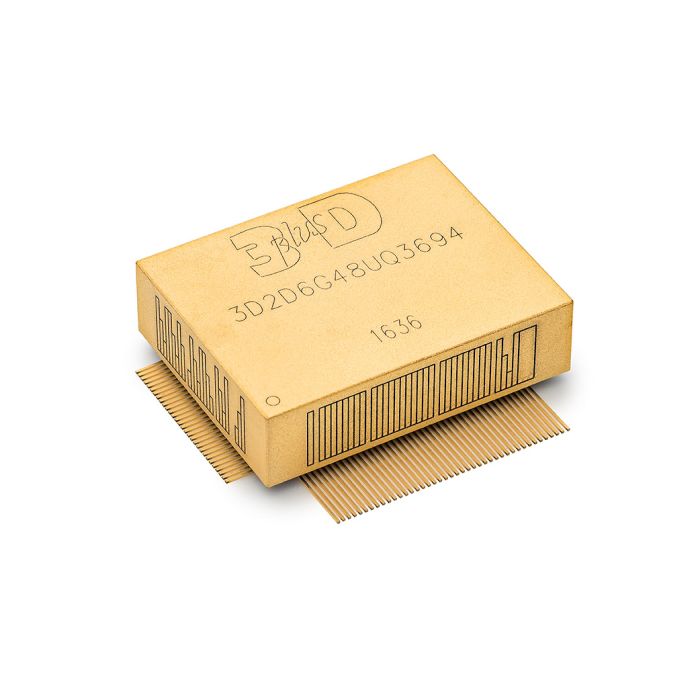

main product photo

The 3D2D6G48UQ3694 is a high-speed highly integrated DDR2 Synchronous Dynamic Ram Memory. It is particularly well suited for use in high reliability, high performance and high density system applications. The 3D2D6G48UQ3694 is packaged in a 144 QFP.

Contact us for Lead Time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Product Type DDR2 SDRAM
Data_Sheet

To request a datasheet, contact a member of our high-reliability team [email protected]
Memory
Power Supply
Pin Assignment QFP 144 - Pitch 0.5 mm
Temperature Range
  • 0°C to +70°C
  • -40°C to +85°C
  • Specific temperature range can be requested
Features
  • Jedec standard 1.8V I/0 (SSTL_18 compatible)
  • Max Data rate = 233 Mbps
  • Differential data strobe per byte
  • 4n-bit prefetch architecture
  • DLL to align DQ and DQS transitions with CK
  • 6 internal banks per die for concurrent operation
  • Programmable CAS Latency
  • Posted CAS Additive Latency
  • Write Latency = Read Latency - 1tck
  • Programmable Burst Lengths: 4 or 8
  • On-Die Termination
  • 3D Plus DDR2 Radiation Harden Solution:
    • TID > 100 Krad (Si)
    • SEL immune > 68 MeV.cm²/mg
    • SEU immune by design (3.8E-9 upset/day/module with 3DIPMC700)
    • SEFI immune by design (with 3DIPMC700)
  • Available with screening option for high reliability application (Space, etc…)
