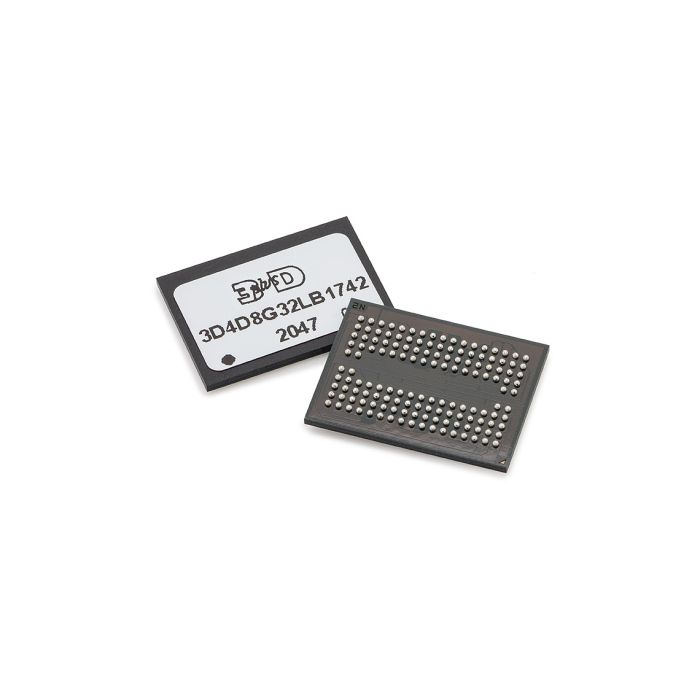

3D4D8G32LB1742

3D Plus

1.2V, 8Gbit DDR4 SDRAM organised as 256Mb x32

Skip to the beginning of the images gallery

3D PLUS offers a new 8Gbit DDR4 SDRAM compatible with the industry standard footprint that are available at 2400 Mbps in Commercial, Industrial and Military temperature range.

Thanks to the high density patented technology the memories are embedded in a small form factor device without compromising electrical or thermal performance. This device is ideal for high density memory applications that require high speed transfer and compatibility with standard servers and networking equipment.

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote

Specifications

More Information
Attribute	Value
Product Type	DDR4 SDRAM
Data_Sheet	To request a datasheet, contact a member of our high-reliability team [email protected]
Configuration	256M x32
Package	FBGA 144
Temperature Range	-40°C to +85°C -40°C to +95°C -55°C to +125°C
Power Supply	+1.2V ± 0.06V
Features	Industry standard ball-out 144-ball FBGA – Lead-free RoHS 32M words x 32 bits x 8 banks VDD/VDDQ = 1.2V±0.06V VPP = 2.375V to 2.75V Interface: Pseudo Open Drain (POD) 8n-bit prefetch architecture 8 internal banks per memory (4 banks x 2 bank groups) On-die termination (ODT) : nominal values of RsQ/7, RsQ/5 (RsQ=240Ω) Programmable CAS latency ON-Die terminaison ( ODT) Fixed burst lengths of 8 and burst chop (BC) of 4 Selectable BC4 or BL8 on-the-fly Auto refresh and Self refresh mode RESET Pin for Power-up sequence and reset function DataRate available : 2400 Mbps Industrial and Military temperature range

Documents

More Information
Attribute	Value
Data Sheet	Click here to view
