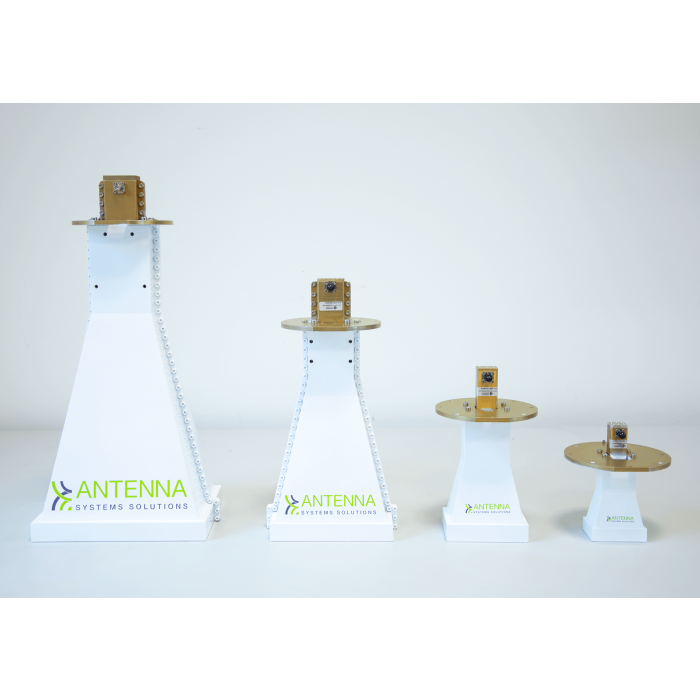

Pyramidal Standard Gain Horn (SGH) - 26.5 GHz – 40.0 GHz
Pyramidal Standard Gain Horns are widely used as reference gain antennas and Far-Field test range feeds, as well as linearly-polarised standards for polarisation and channel balance calibration of Near-Field probes.
A robust design allows ASYSOL SGHs to be scaled to any frequency range ( 500MHz to 60GHz in standard octave bandwidth) with reliable performance. High accuracy manufacturing enables a symmetrical radiation pattern with very low cross-polarisation, typically below -45dB.
ASYSOL SGH’s are equipped with an integrated coaxial connector and circular mounting flange , enabling them to connect with ASYSOL standard positioners. Customised models are also available, for example, with a standard waveguide flange or custom mechanical interface. The horns are treated with an Alodine surface finish and painted to ensure environmental protection.
A full measurement report is supplied with every horn, including the following parameters:
- Main antenna pattern (centre frequency)
- Reflection coefficient
- Swept gain
- Swept on-axis cross-polarisation
For datasheet specifications, please contact a member of our test team.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Maximum Frequency | 40 GHz |
| Minimum Frequency | 26.5 GHz |
| Frequency Range | 26.5 GHz – 40.0 GHz |
| Gain | 23 dBi |
| VSWR | < 1.4:1 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
