AT40A-1011-H04-20
AT40A-1011-H04-20
Aaren Technology

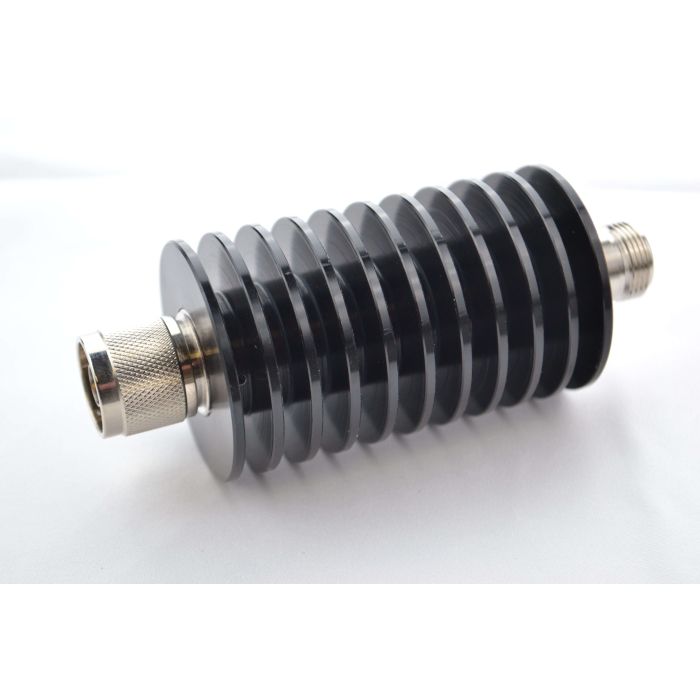

RF Coaxial Attenuator N-Type Male/ Female DC-4000MHz, 20dB, 25W CW
Price breaks are available for higher quantities - please ask a member of our team for details on 0330 313 3220, or email [email protected].
In stock
| Attribute | Value |
|---|---|
| Weight | 0.259 |
| Impedance | 50Ω |
| Frequency | DC~4 |
| VSWR Max | 1.25 |
| Temperature Range | -35 ~ +85°C |
| Power Handling | 25W |
| Attenuation | 20 |
| Accuracy | ±0.6 |
| Peak Power | 1W (5μs pulse width with 2.5% duty cycle) |
| Connectors | N Type Male to N Type Female |
| Direction | Bi-Directional |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
