Hioki CT7731 Current Sensor | APC Technology Group

CT7731

CT7731

Hioki

Current Sensor

This product is available in 5-7 weeks

Accurate, Long-term Recording and Easy Output Settings

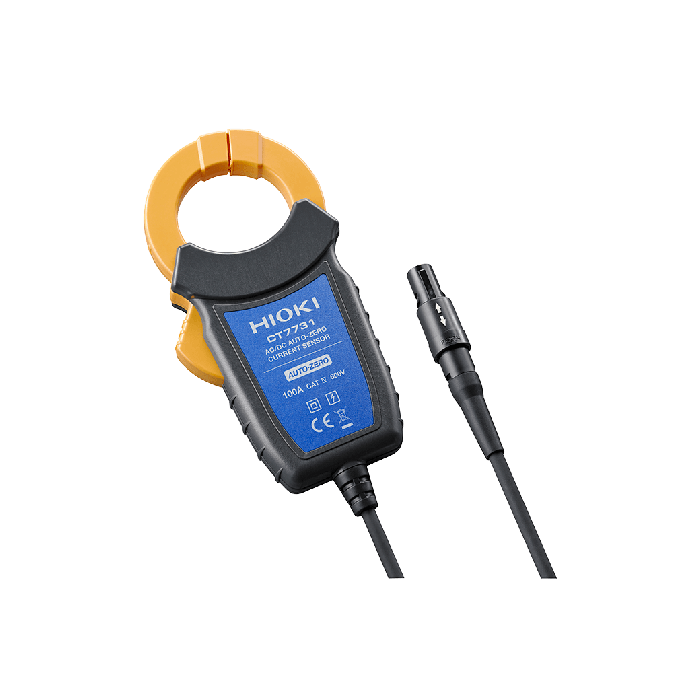

Hioki clamp on meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. The CT7731 is a 100 A AC/DC Current Sensor that pairs with the detachable Display Unit CM7290 or CM7291 for convenient field testing, while delivering an extended temperature range and auto-zero adjustment to minimize drift due to wide temperature changes that occur during long-term testing.

Further extend the functionality of this system by connecting the Display Unit with a Hioki memory recorder or logger.

CAT IV 600 V

Key Features

  • Accurately measure and record even when the temperature changes
  • Ideal for site inspections by using detachable Display Unit
  • Four output formats to output data to loggers or other devices (via Display Unit): WAVE, RMS, PEAK, Hz
In stock
£465.44
More Information
Attribute Value
Included Accessories None
Max Allowable Input 150 A peak
Dimensions and Weight 58 mm (2.28 in)W × 132 mm (5.20 in)H × 18mm (0.71 in)D, 250 g (8.8 oz), Cable length 2.5 m (8.20 ft)
Basic Accuracy ±1.8 deg. (DC < f ≤ 66 Hz)
Rated Current 100 A AC/DC
Frequency Bandwidth DC to 5 kHz (-3dB)(When used in combination with CM7290 or CM7291: DC 3 Hz to 1 kHz)
Core Diameter φ 33 mm (1.30 in) or less
Operating Temperature and Humidity -25 °C to 65 °C (-13 °F to 149 °F)
Max. Rated Power 150 A peak
Output Connectors HIOKI PL 14
More Information
Attribute Value
Data Sheet Click here to view
