Hioki

Sensor Unit CT9556 - Power supply for high-precision current sensors

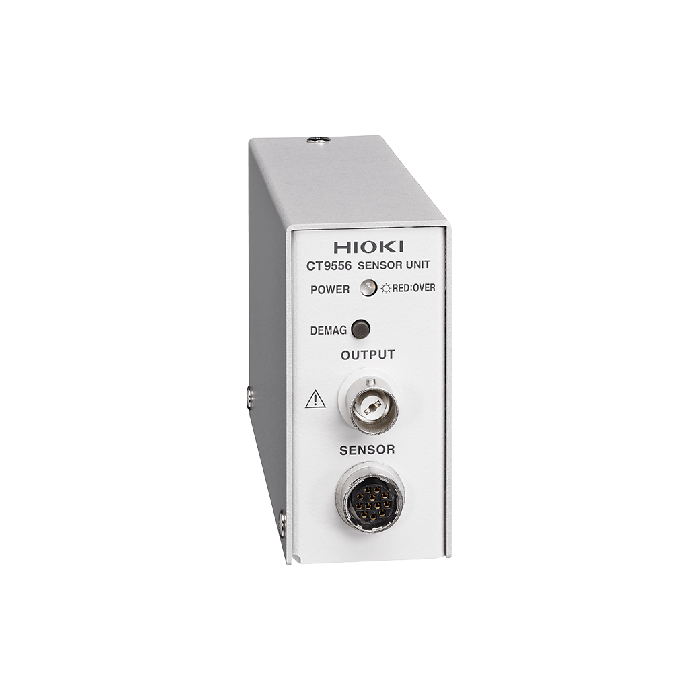

main product photo
Hioki pass-through current sensors and clamp on current probes are best-in-class current sensing devices for use with power meters, Memory HiCorders and high performance oscilloscopes. The CT9556 is 1-channel sensor unit and power adapter for any of the CT686x series, 9709 and CT684x series current sensors and probes that provides waveform and RMS output.
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Key Features
  • Power supply for high-precision current sensors with waveform output / RMS output functionality
Basic Specifications
Connectable current sensors Current sensors with a Hioki ME15W (male) output connector (CT686x-05, 9709-05, CT684x-05, etc.)
*The separately available Conversion Cable CT9900 is required in order to use a current sensor equipped with a PL23 (10-pin) terminal
Output Terminal BNC Terminal
Output voltage Waveform output: 2 V f.s.
RMS output: 2 V DC f.s.
Output resistance 50 Ω
Operating temperature range -10°C to 50°C (14°F to 122°F)
Power supply AC Adapter Z1008 (100 to 240 V AC, 50/60 Hz, maximum rated power when used with sensors: 45 VA)
External power supply (10 to 30 V DC; maximum rated power: 15 VA)
Dimensions and mass 33 mm (1.30 in)W × 67 mm (2.64 in)H × 132 mm (5.20 in)D (excluding protruding parts), 200 g (7.1 oz)
Accessories AC Adapter Z1008 ×1, Power cord ×1, Instruction manual ×1
Accessory Type Power Supply
More Information
Attribute Value
Data Sheet Click here to view
