DR-01 6 GHz – 18 GHz
DR-01
Narda Safety Test Solutions
Double Ridged Antenna

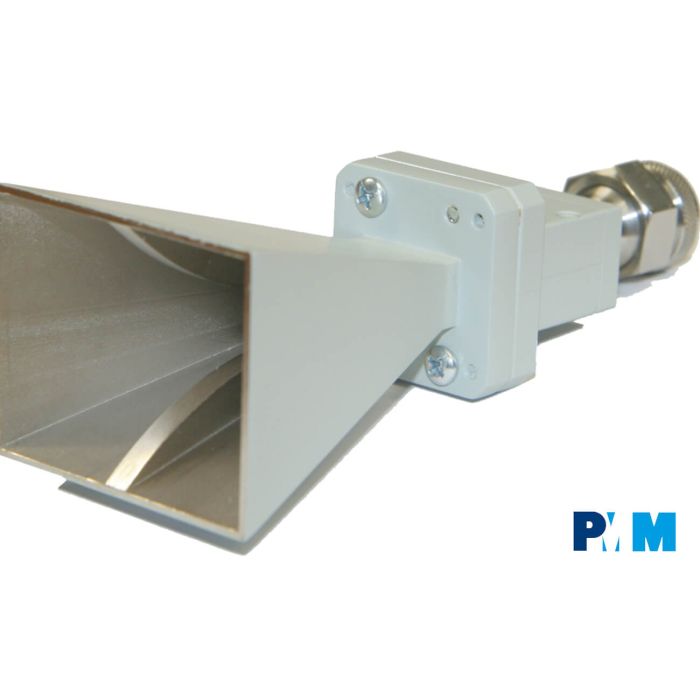

The DR-01 is a Broadband, Double-Ridged Horn Antenna designed for radiated emissions and immunity applications, in the frequency range 6 - 18 GHz.
The N connector is mounted along the antenna axis, thus allowing for direct connection, without cable or adapters, to the 18 GHz EMI receiver model 9180.
The group antenna-receiver can be easily installed on a tripod or mast and connected by a Fibre optic cable to the main unit model 9010F, thus increasing sensitivity and reducing overall uncertainty. DR01 can be used in conjunction with any Receiver or Spectrum Analyser.
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Frequency Range | 6 to 18 GHz |
| Gain | 9 to 16 dBi |
| Antenna Factor | 36 to 41 dB/m |
| VSWR | < 2 (1,8:1 typical) |
| Max Input Power | 150 W |
| Construction | Aluminium |
| Impedance | 50 Ω nominal |
| Colour | RAL 7035 |
| Dimensions | 137 x 44 x 55 mm |
| Weight | 250 g |
| Beam Width |
E-plane 33° |
| Connector | N male |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
