SOM-DK3520
SOM-DK3520
Advantech

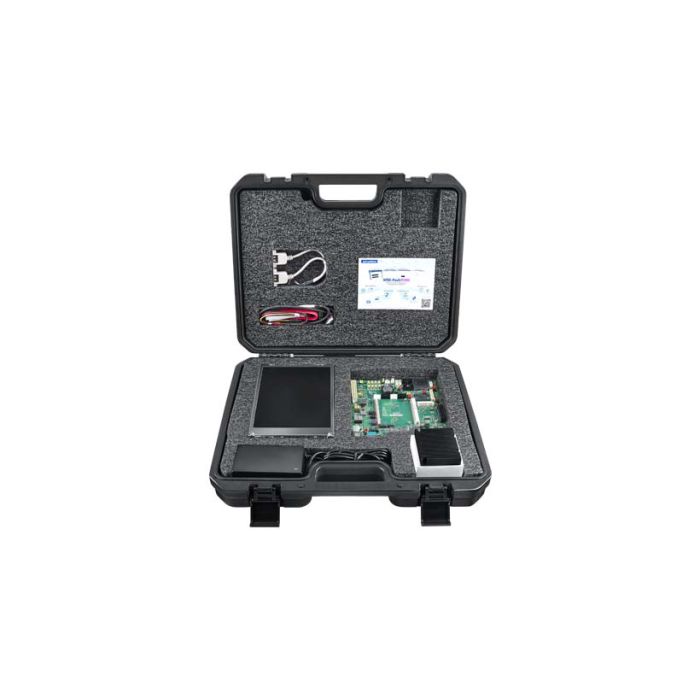

Qseven Development Kit
Advantech X86 evaluation kits provide a complete set of COM, development board and peripheral, customers can do quick start for their system design.
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Form Factor | Advantech Qseven CPU Module Series |
| USB 3.0 | 2 Ports (Default), (Option1: 1 USB3.0 & 8 USB2.0; Option 2: 3 USB 3.0 & 4 USB 2.0) |
| USB 2.0 | 6 Ports (Default) |
| COM Port | 2 Ports, COM1(DB9): RS232/422/485; COM2 (box header): RS232 |
| Audio | HD Audio |
| LCD | LVDS: Dual channel 18/24-bit (eDP optional) |
| DP++ | DP (HDMI/DVI optional) |
| PCI Express x1 | 1 PCIe X4 slot |
| LPC | Yes |
| SMBus | Yes |
| I²C Bus | Yes |
| Gigabit Ethernet | 1 Gigan LAN |
| SATA | 2 Ports. Support Gen3.1 (6Gb/s) and Gen2 (3 Gb/s) or Gen 1(1.5 Gb/s) |
| SPI Bus | 1 Socket |
| SDIO | 1 Socket |
| Smart Fan | 1 Port |
| Power Type | ATX/AT Modes, DC-in |
| Storage Temperature | -40 ~ 85° C (-40 ~ 185° F) |
| Operating Temperature | 0 ~ 60° C (32 ~ 140° F) |
| Humidity |
Operating: 40 °C @ 95% relative humidity, non-condensing
Storage: 60 °C @ 95% relative humidity, non-condensing |
| Dimensions | 170 x 170 mm |
