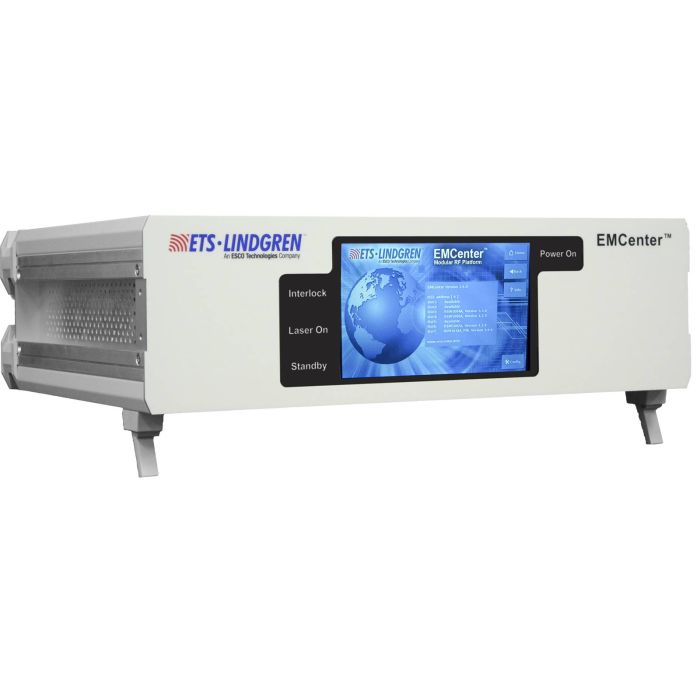

EMCenter

Monitor and Control Various RF Applications with Ease

EMCenter Field Monitor is a modular RF platform consisting of an integrated micro-controller, modular chassis, and includes a selection of up to seven EMSense™ plug-in card modules. Additional EMSense cards can be purchased separately to add to your EMCenter Field Monitor at any time. Typical EMCenter Field Monitor applications include EMC and wireless measurements, E-field monitoring, and other RF applications. EMCenter Field Monitors can be manually controlled through a series of menus accessed on the front panel TFT touch screen.

The platforms embedded Linux-based software is stored in flash memory to simplify version upgrades. For automated testing, the EMCenter Field Monitor can be controlled with TILE!, EMQuest™ and other PC compatible RF software packages. An optional GPIB IEEE-488 I/O with a LAN interface converts the 7000-001 into the Model 7000-010, in which the software can control external receivers, amplifiers, power meters, antennas, and other equipment in the test loop.

Key Features:

• Modular Platform for Making RF Measurements
• Accomodate EMSense, EMGen, EMSwitch Cards within 7 Availabe Slots
• Reduces Test System Complexity Includes Backplane, Power, and TFT
• Touch Screen Control
