HI-1710A
HI-1710A
ETS-Lindgren

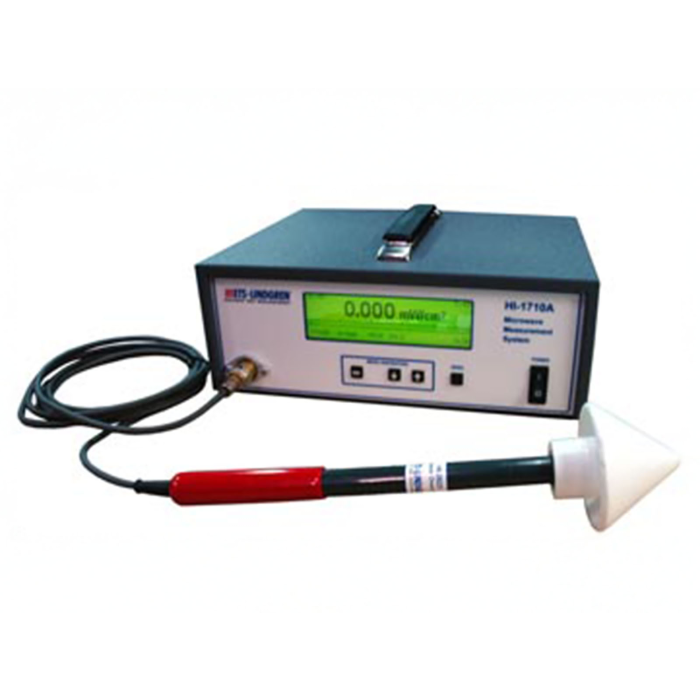

Microwave Oven Survey Meter
Precision Microwave Oven Survey Meter
The HI-1710A Microwave Oven Survey Meter combines established diode-based sensing with modern digital signal processing to deliver precise measurements of microwave oven radiation for compliance, research, and manufacturing environments. Its RS-232 interface enables seamless integration into automated or semi-automated test systems, while digital peak-hold and push-button zeroing streamline testing and reduce user error.
Selectable digital filters offer Fast and Slow response modes, replicating the behavior of traditional analog survey meters for familiar operation. Automatic self-test routines verify performance at power-up and during zeroing, and additional diagnostic functions accessible from the front panel provide immediate confirmation of instrument status.
Key Features:
- Digital Alarm Set nAuto-ranging
- RS-232 Interface
- Removable Sensing Probe
- Remote Zero
- Analog Bar Graph
- Serial Printer Output
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Configuration |
|
| Input |
Zero - Dry switch closure to zero the HI-1710A RS-232 - Standard 9-pin, 2-way communications output |
| Output |
Alarm Output - Form C contact; 24 V 1 Amp Analog Output - 4 VDC max; 1 mA max RS-232 - Standard 9-pin, 2-way communications output |
| Power Input | 100–240 VAC, 0.8–0.4 A max, 50/60 Hz |
| Overload | 2.0 Watts/cm2 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
