ERZ-LNA-0100-0310-30-2
ERZ-LNA-0100-0310-30-2
Erzia

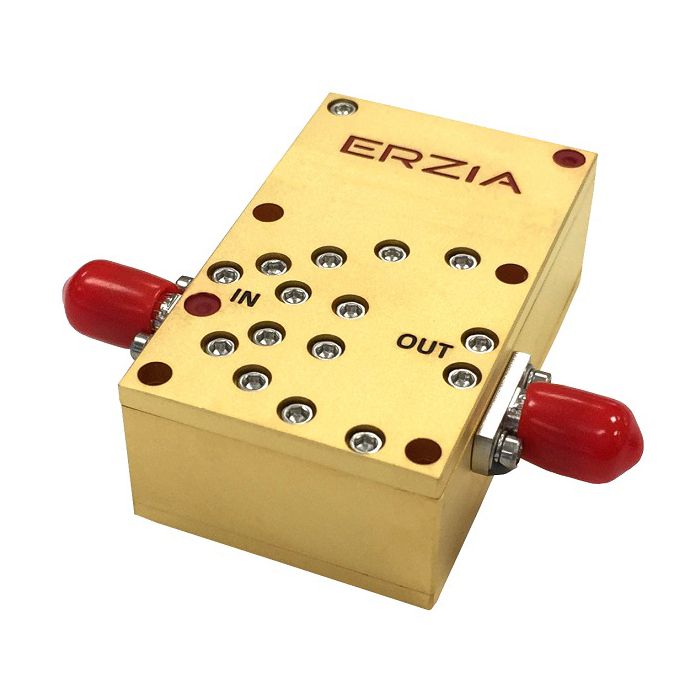

L Band Low Noise Amplifier
The ERZ-LNA-0100-0310-30-2 is a low noise amplifier providing a gain of 30 dB and a noise figure of 1.6 dB. The compact size and modularity makes it ideal for a wide range of applications.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Applications |
|
| Frequency Start (GHz) | 1.0000 |
| Frequency Stop (GHz) | 3.1 |
| Power Supply (V) | 15 |
| Current (mA) | 79 |
| Storage Temperature | -55°C to 125°C |
| Band | L Band |
| Output Power (dBm) | 19 |
| Gain (dB) | 30 |
| Operating Temperature | -40°C to 85°C |
| Connectors | SMA Female |
| Product Type | Low Noise Amplifier |
| Dimensions | 30 x 50 x 17.5 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
