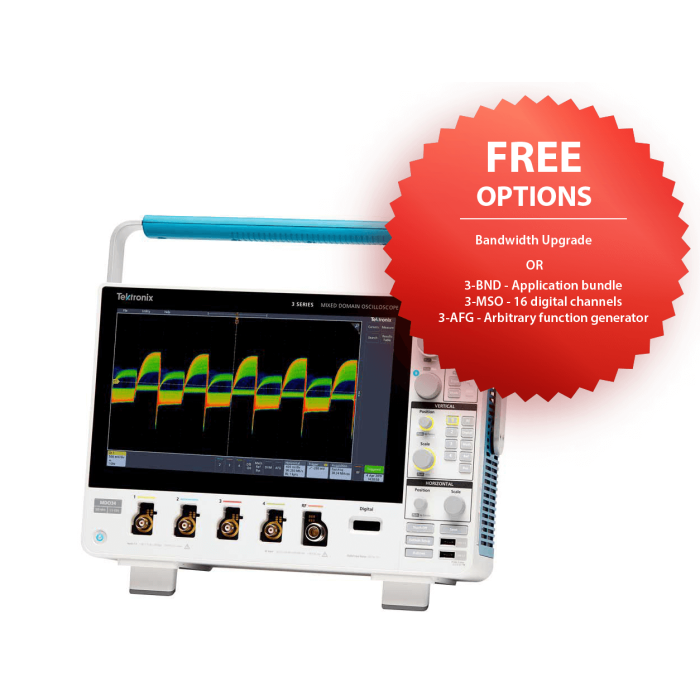

MDO32

Tektronix

Mixed Domain Oscilloscope with (2) analogue channels, (1) auxiliary trigger input, a 1 GHz spectrum analyser, (1) spectrum analyser input, and (1) logic analyser input

Skip to the end of the images gallery

Skip to the beginning of the images gallery

This product is included in the Tektronix Supercharge 3 Series MDO Promotion!

For a limited time, if you purchase a qualifying 3 Series MDO you will receive:

FREE bandwidth upgrade to next level higher bandwidth

PLUS:

THREE FREE Options:

3-BND - Application bundle with serial decode buses such as I2C, SPI, CAN, LIN & USB plus automated power analysis
3-MSO - 16 digital channels; free up your analogue channels and see more signals by upgrading to mixed signal capability
3-AFG - Arbitrary function generator with 13 predefined waveforms and arbitrary waveform generation

Find out more here.

With the largest display in class, improved low-level signal measurement accuracy and industry-leading probe performance, the 3 Series MDO sets a new standard for bench oscilloscopes. Whether you’re testing your baseband design for IoT or just for simple EMI sniffing, the 3 Series has a unique true hardware spectrum analyser built right in with superior RF test performance and guaranteed RF specifications.

Contact our team for stock availability and product options.

Price £3,560.00

Request a quote

Discover Tektronix's factory service plans

Protect your investment and your uptime with Tektronix's service plans, review each plan and choose which is best for you.

Find out more

[email protected]

+44 330 313 3220

Supercharged Tektronix 3 Series Mixed Domain Oscilloscope Promotion

Receive FREE OPTIONS when you purchase a Tektronix 3 Series oscilloscope!

Savings of up to 68%!

Find out more

[email protected]

+44 330 313 3220

Specifications

More Information
Attribute	Value
Manufacturer Product Family	3 Series MDO Mixed Domain Oscilloscope
Key Features	2 and 4 analogue channel models 100 MHz, 200 MHz, 350 MHz, 500 MHz, 1 GHz bandwidth models Bandwidth is upgradable (up to 1 GHz) Up to 5 GS/s sample rate 10 M record length on all channels >280,000 wfm/s maximum waveform capture rate Standard passive voltage probes with 3.9 pF capacitive loading and 250 MHz, 500 MHz or 1 GHz analogue bandwidth Spectrum analyser Frequency range: 9 kHz - 1 GHz (standard) or 3 GHz (optional) Ultra-wide capture bandwidth up to 3 GHz Arbitrary Function Generator (optional) 13 predefined waveform types 50 MHz waveform generation 128 k arbitrary generator record length 250 MS/s arbitrary generator sample rate Digital Channels (optional) 16 digital channels 10 M record length on all channels 121.2 ps timing resolution Serial Bus Decode, Triggering and Search (optional) Serial bus support for I2C, SPI, RS-232/422/485/UART, USB 2.0, CAN, CAN FD, LIN, FlexRay, MIL-STD-1553, ARINC429, and Audio standards Digital Voltmeter / Frequency Counter (Free with product registration) 4-digit DC, AC RMS, and DC+AC RMS voltage measurements 5-digit frequency measurements
Sample Rate	Up to 5 GS/s
Record Length	10 M points
Bandwidth	100 MHz to 1 GHz
Channels	2
Series	3 Series MDO
