MDO34

MDO34

Tektronix

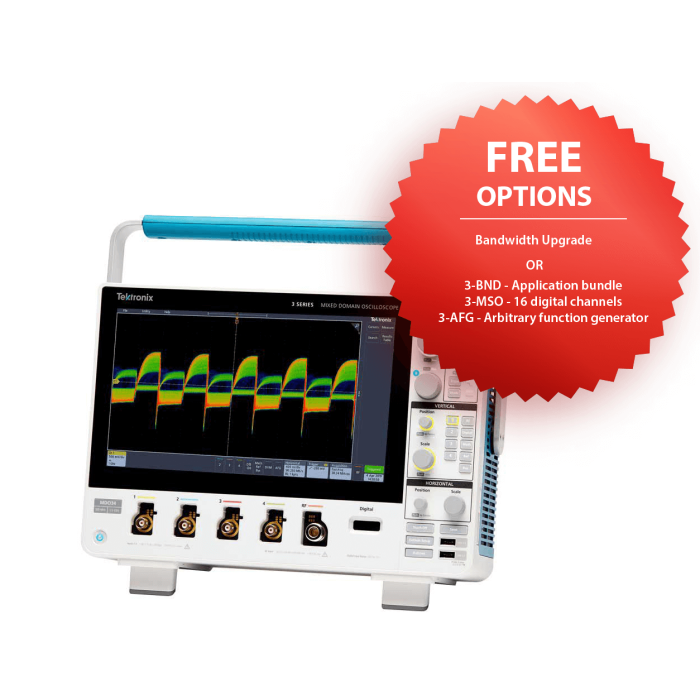

Mixed Domain Oscilloscope with (4) analogue channels, a 1 GHz spectrum analyser, (1) spectrum analyser input, and (1) logic analyser input

This product is included in the Tektronix Supercharge 3 Series MDO Promotion!

For a limited time, if you purchase a qualifying 3 Series MDO you will receive:

  • FREE bandwidth upgrade to next level higher bandwidth

PLUS:

THREE FREE Options:

  • 3-BND - Application bundle with serial decode buses such as I2C, SPI, CAN, LIN & USB plus automated power analysis
  • 3-MSO - 16 digital channels; free up your analogue channels and see more signals by upgrading to mixed signal capability
  • 3-AFG - Arbitrary function generator with 13 predefined waveforms and arbitrary waveform generation

Find out more here.

With the largest display in class, improved low-level signal measurement accuracy and industry-leading probe performance, the 3 Series MDO sets a new standard for bench oscilloscopes. Whether you’re testing your baseband design for IoT or just for simple EMI sniffing, the 3 Series has a unique true hardware spectrum analyser built right in with superior RF test performance and guaranteed RF specifications.

Contact us for lead time

Contact our team for stock availability and product options.

Price £4,270.00

Discover Tektronix's factory service plans

Protect your investment and your uptime with Tektronix's service plans, review each plan and choose which is best for you.

Supercharged Tektronix 3 Series Mixed Domain Oscilloscope Promotion

Receive FREE OPTIONS when you purchase a Tektronix 3 Series oscilloscope!

Savings of up to 68%!

More Information
Attribute Value
Manufacturer Product Family 3 Series MDO Mixed Domain Oscilloscope
Key Features
  • 2 and 4 analogue channel models
  • 100 MHz, 200 MHz, 350 MHz, 500 MHz, 1 GHz bandwidth models
  • Bandwidth is upgradable (up to 1 GHz)
  • Up to 5 GS/s sample rate
  • 10 M record length on all channels
  • >280,000 wfm/s maximum waveform capture rate
  • Standard passive voltage probes with 3.9 pF capacitive loading and 250 MHz, 500 MHz or 1 GHz analogue bandwidth
  • Spectrum analyser
  • Frequency range: 9 kHz - 1 GHz (standard) or 3 GHz (optional)
  • Ultra-wide capture bandwidth up to 3 GHz
  • Arbitrary Function Generator (optional)
  • 13 predefined waveform types
  • 50 MHz waveform generation
  • 128 k arbitrary generator record length
  • 250 MS/s arbitrary generator sample rate
  • Digital Channels (optional)
  • 16 digital channels
  • 10 M record length on all channels
  • 121.2 ps timing resolution
  • Serial Bus Decode, Triggering and Search (optional)
  • Serial bus support for I2C, SPI, RS-232/422/485/UART, USB 2.0, CAN, CAN FD, LIN, FlexRay, MIL-STD-1553, ARINC429, and Audio standards
  • Digital Voltmeter / Frequency Counter (Free with product registration)
  • 4-digit DC, AC RMS, and DC+AC RMS voltage measurements
  • 5-digit frequency measurements
Sample Rate Up to 5 GS/s
Record Length 10 M points
Bandwidth 100 MHz to 1 GHz
Channels 4
Series 3 Series MDO
More Information
Attribute Value
Data Sheet Click here to view
