POC-S199
POC-S199
Advantech

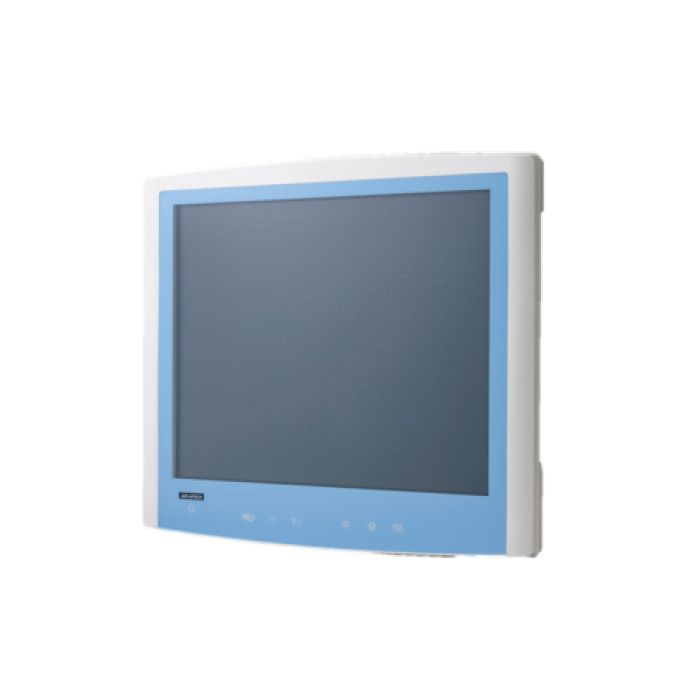

19" slim medical PC with IP54 enclosureand multi-touch screen
POC-S199, the 19" Slim Medical PC, features IP54 enclosure which provides protection from water and dust, easy cleaning, and added safety for patients and clinicians. POC-S199 is delivered with Advantech’s exclusive POC_Link remote management software, adding easy remote management capabilities to the specialized high-performance system. POC-S199 is designed for a wide array of applications from operating rooms and intensive care units, to nursing stations and other locations throughout a medical center.
Key Features
- 19" LCD display with 16.7 M colors
- 6th Generation Intel® Core™ i7/i5/i3/Celeron® processor
- True flat panel with multi-touch projective capacitive touchscreen
- Fanless design with full system IP54 dust and splash protection
- Isolated design provides unique electric leakage protection for COM and LAN ports
- UL60601-1/EN60601-1 Ed. 3.1 certified ensures highest levels of safety and reliability
- Optional Bluetooth, RFID, WLAN, and Li-ion battery pack
- Built-in POC intelligent software solution for easy management
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Dimensions | 470.5 x 415.2 x 75.64 mm |
| Operating System | Windows 10 IoT / Windows 7 |
| Power |
AC/DC adapter (Sinpro Model no.HPU101-107)
Input voltage: 90 - 260 VAC, 1.35 - 0.5 A, 47 - 63 Hz Output voltage: +18 VDC, 5.55 A max. (100 watts) |
| Touchscreen | Projected capacitive 10-point (AG), with continuous resolution, 8-% light transmission and durability >100 million touches. |
| Smart Card Reader | Optional, complies with ISO7816-1,2,3,T=1 and T=0 protocol |
| CPU |
Intel® Core™ i7-6600U Processor (4M Cache, up to 3.40 GHz) Intel® Core™ i5-6300U Processor (3M Cache, up to 3.00 GHz) Intel® Core™ i3-6100U Processor (3M Cache, 2.30 GHz) (by project) Intel® Celeron® Processor 3955U (2M Cache, 2.00 GHz) (by project) |
| Display Max Resolution | 1280 x 1024 |
| USB 3.0 | 2 |
| IP Rating |
IP65 (front panel)
IP54 (without smart card reader option) |
| LAN | 2 x Gigabit Ethernet (1.5kV isolation) interfaces (RJ-45) |
| Mounting |
VESA 100 x 100mm
VESA 75 x 75mm |
| Display Size | |
| Memory | DDR4-1866/2133 SODIMM (up to 32GB |
| Graphics Controller | Intel HD Graphics 520/510 |
| HDMI | 1 x HDMI max resolution 4096x2304@24Hz |
| Display port | 1 x DP max resolution 4096x2304@60Hz |
| Expansion Slot |
Mini PCIe(mSATA) x 2 (Mini PCIe: 1 full-size,1half-size)
1 x PCIe (x4) slot (Max. card length: 167 mm) |
| Speakers | 2 |
| RFID reader | Optional 13.56MHz, ISO-15693, ISO-14443A, ISO-14443B |
| WLAN and Bluetooth | Optioanl IEEE 802.11 ac/a/b/g/n, Wi-Fi with Bluetooth v4.1 M.2 Combo |
| Backup Battery | Optional 3S1P 1750mAH, supports 0.5hr backup operation. Adding the battery will shorten available PCIe x4 slot space inserted. |
| Certifications | UL60601-1/EN60601-1 Ed. 3.1, CE & FCC Class B certified |
| USB 2.0 type A | 2 |
| Serial Port | 2 x RS-232/422/485 (1.75kV isolation) serial ports |
| Operating Temperature | 0° C - +40° C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
