POC-WP213
POC-WP213
Advantech

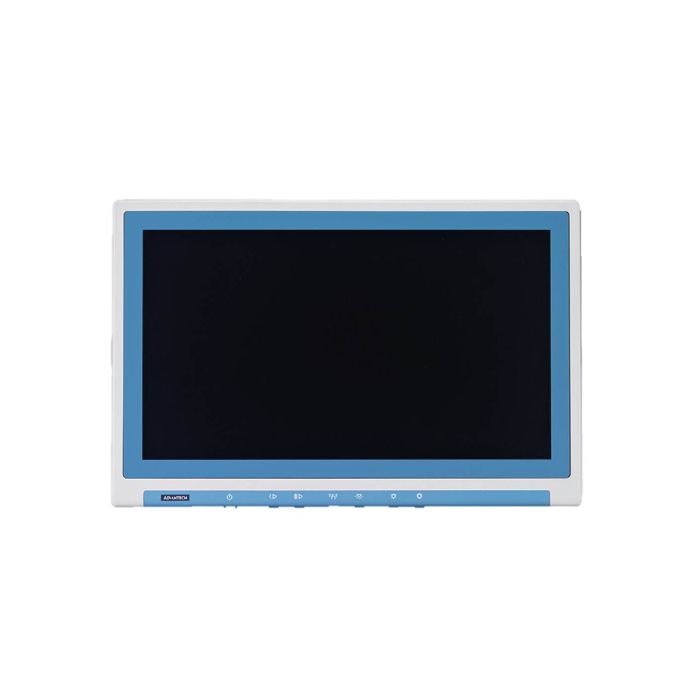

21.5" widescreen medical grade computer with fanless and slim design
The POC-WP213 is a multimedia Intel® Core™ i7 or i5 processor series designed for mobile computing as a Medical Computer. It is a PC-based system with 21.5" wide screen TFT LCD display, single VGA port, HDMI out, dual on-board 10/ 100/1000 PCI-E Ethernet controllers, and one LAN port. It supports the Intel AMT9.5 function, has dual COM ports, quad USB 2.0 ports and a 24-bit stereo audio control- ler. With an optional 2.5" SATA drive, the POC-WP21 Aeries is a user-friendly computer. For system integrators, this highly integrated multimedia system lets you easily build a Point-of-Care Terminal into your applications.
The POC-WP21 Aeries makes it an ideal and safe point-of-care solution for patients and hospital practitioners. The POC-WP21 Series is specially designed to resist spills and water damage, and ensures dust resistance with its protected LCD and sealed ports. The POC-WP21 Aeries is a reliable solution to your application''s processing requirements.
Key Features
- Support Intel® firmware trusted platform module (TPM) with Intel® Platform Trust Technology (Intel® PTT)
- Optional Bluetooth, RFID, inner WLAN, IEEE 1394, and DICOM module
- IEC60601-1 compliance ensures highest levels of safety and reliability
- IP54 water resistant enclosure
- Isolated design provides unique electric leakage protection for COM ports and LAN ports
- Capable of displaying crystal clear images on its 21.5" wide-screen display
- Ultra-thin display, only 65 mm slim at its widest point
- Runs on an Intel® Core™ i7 6th generation processor with a fanless, high performance profile
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Dimensions | 550 x 360 x 65 mm |
| Power |
Input Voltage 100 - 240 VAC, 47Hz to 63Hz, Maximum output power 150W
Output Voltage 12.0 V ± 2%, 0A to 8.30A (at convection) |
| Touchscreen | Optional analogue resistive or projected capacitive 10-point. With continuous resolution, 80-90% light transmission, USB interface and durability of 35 million to >50 million touches. |
| CPU |
Supports Intel® PTT Technology
Intel® Core™ i7-6600U Processor (4M Cache, up to 3.40 GHz) Intel® Core™ i5-6300U Processor (3M Cache, up to 3.00 GHz) Intel® Core™ i3-6100U Processor (3M Cache, 2.30 GHz) Intel® Celeron® Processor 3955U (2M Cache, 2.00 GHz) Intel® Core™ i7-7600U Processor (4M Cache, up to 3.90 GHz) Intel® Core™ i5-7300U Processor (3M Cache, up to 3.50 GHz) Intel® Core™ i3-7100U Processor (3M Cache, 2.40 GHz) Intel® Celeron® Processor 3965U (2M Cache, 2.20 GHz) |
| Primary Storage | 128GB SSD |
| Display Max Resolution |
1920 x 1080
16.7 M colors (6-bits+A-FRC) Luminance: 250 cd/m2 LED backlight 1000:1 contrast ratio |
| USB 3.0 | 2 x USB 3.0 ports (rear) |
| IP Rating |
IP54 (system)
IP65 (front panel) |
| LAN | 2 x Gigabit Ethernet (1.5KV isolated) interfaces (RJ-45) |
| Mounting |
VESA 100 x 100mm
VESA 75 x 75mm |
| Display Size | |
| Memory |
Dependent on processor choice:
DDR4 2133 SODIMM (up to 32GB) 2 x DDR4 SODIMM slot (Default 4GB; Up to 16GB) |
| Graphics Controller |
Dependent on processor choice:
Intel HD Graphics 520/510 Intel HD Graphics 620/610 |
| G-Sensor | 2g/±4g/±8g/±16g, 6D/4D orientation detection |
| Secondary storage (optional) |
2.5" SATA HDD instead of SSD
Mini PCIe mSATA |
| HDMI | 1 x up to 4096 x 2304 @ 24Hz |
| Display port | 1 x up to 4096 x 2304 @ 60Hz |
| Expansion Slot |
Mini PCIe (mSATA) x 2 (1 x full-size, 1 half-size)
1 x PCIe (x4) (Max. card length: (Supports Gen 1/2/3) 1) without HDD/SSD: 167.65mm; 2) with HDD/SSD: 140 mm (or 167.65mm but with card width limited to 88 mm) |
| Speakers | 2 x 2W |
| RFID reader | Optional 13.56MHz, ISO-15693, ISO-14443A, ISO-14443B |
| WLAN and Bluetooth | Optional Qualcomm Atheros Dual-band (2.4/5GHz) 802.11 a/b/g/n/ac 2Tx/2Rx WiFi & Bluetooth v4.1 |
| Certifications | IEC 60601-1 Edition 3.1 compliance, CE & FCC Class B Edition 4.0 certified |
| USB 2.0 type A | 4 x USB 2.0 ports (rear & PCIe (x4) slot) |
| Serial Port | 2 x RS-232/422/485 (1.5KV isolated) serial port |
| Operating Temperature | 0° C - +40° C |
| Attribute | Value |
|---|---|
