MIC-710AILX-DVA
MIC-710AILX-DVA
Advantech

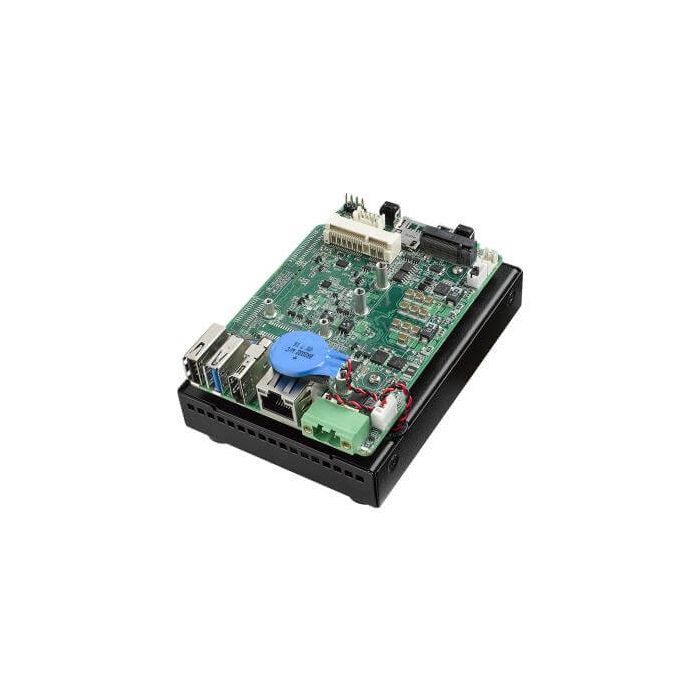

AI Developer Kit Based on NVIDIA® Jetson Xavier™ NX
AI Developer Kit Based on NVIDIA® Jetson Xavier™ NX.
Key Features:
- Open-frame carrier design with thermal solution
- Embedded with NVIDIA® Jetson Xavier™ NX up to 21 TOPS
- Supports 1 x GbE, 1 x USB 3.2 Gen 1 (5 Gbit/s)
- Supports 1 x mPCIe, 1 x M.2 2280
- Supports Allxon 24/7 remote monitoring and OTA deployment
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| NVIDIA® CPU/GPU | NVIDIA® Jetson Xavier™ NX |
| CPU/GPU |
CPU: 6-core NVIDIA Carmel Arm® v8.2 64-bit CPU (6MB L2 + 4MB L3) |
| Memory | 16GB LPDDR4 |
| Flash | 16G of eMMC |
| USB |
External: 1 x USB 2.0, 1 x USB 3.2 Gen 1 |
| Serial Ports | RS-232 (by pin header) |
| OTG USB | 1 x Micro USB |
| Mini PCIe | 1 x mPCIe (Signal: PCIe x1 + USB 2.0) |
| SIM | 1 x Nano SIM |
| Storage M.2 | 1 x M.2 2280 (M-Key, NVMe, Signal: PCIe x4) |
| SD Card | 1 x Micro SD |
| Display | HDMI (Max. resolution 3840x2160 @ 60Hz) |
| Ethernet | 1 x 10/100/1000 Mbps |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
