MIC-711D-ON
MIC-711D-ON
Advantech

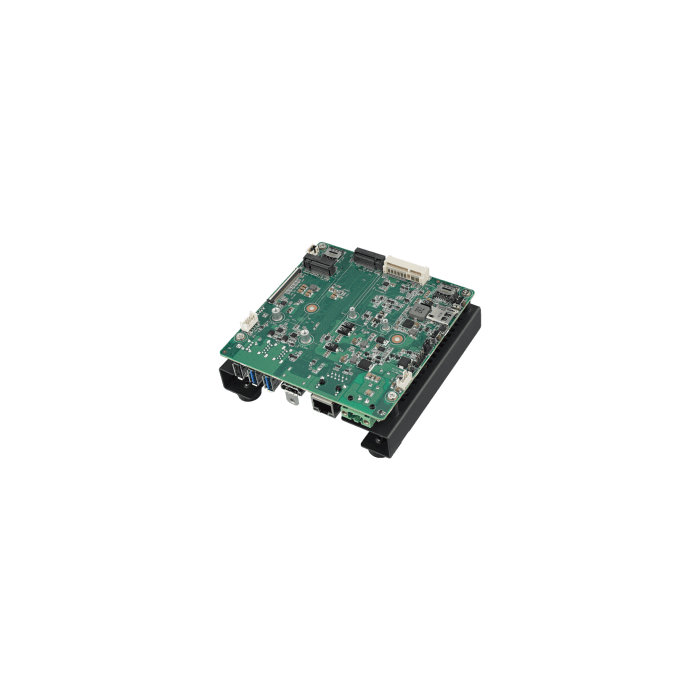

NVIDIA® Jetson Orin™ Nano Developer Kit
NVIDIA® Jetson Orin™ Nano Developer Kit.
Key Features:
- Open-frame carrier design with thermal solution
- Embedded with NVIDIA® Jetson Orin™ Nano up to 67 TOPS
- Supports 1 x GbE, 2 x USB 3.2 Gen 1 (5 Gbit/s)
- Supports 1 x mPCIe, 1 x M.2 3052, 1 x M.2 2280
- Supports Allxon 24/7 remote monitoring and OTA deployment
- Supports Super mode with Jetpack 6.2 and above
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| CPU |
6-core Arm® Cortex®-A78AE v8.2 64-bit CPU |
| GPU |
8G: 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
| NVIDIA® CPU/GPU | NVIDIA® Jetson Orin™ Nano |
| Memory |
8GB: 8GB LPDDR5 |
| USB |
External: 2 x USB 3.2 Gen 2, 1 x USB 2.0 |
| OTG USB | 1 x Micro USB |
| Mini PCIe | 1 x mPCIe (Signal: PCIe + USB 2.0) |
| SIM | 2 x Nano SIM slots |
| Expansion M.2 | 1 x M.2 3052 (B-Key, Signal: USB) |
| GMSL (Optional) | 2-ch GMSL2.0 with FAKRA connectors |
| Storage M.2 | 1 x M.2 2280 (M-Key, NVMe, Signal: PCIe x4) |
| SD Card | 1 x Micro SD |
| Display | HDMI (Max. resolution 3840x2160 @ 60Hz) |
| Ethernet | 1 x 10/100/1000 Mbps |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
