MIC-732D-AO
MIC-732D-AO
Advantech

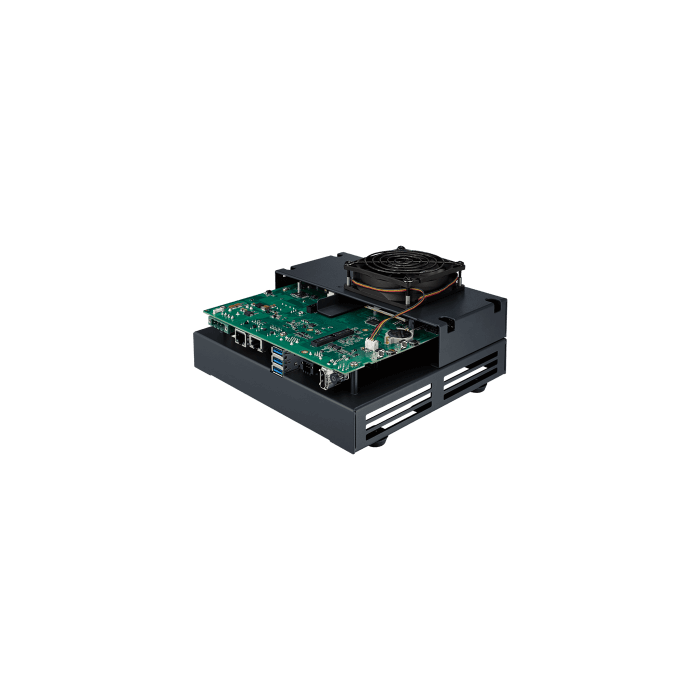

AI Developer Kit Based on NVIDIA® Jetson AGX Orin™
AI Developer Kit Based on NVIDIA® Jetson AGX Orin™.
Key Features:
- Open-frame carrier design with thermal solution
- Embedded with NVIDIA® Jetson AGX Orin™ up to 275 TOPS
- Supports 1 x 10GbE, 1 x 2.5GbE, 3 x USB 3.2 Gen 2 (10 Gbit/s)
- Supports 2 x CANbus, 1 x mPCIe, 2 x Nano SIM slots
- Support Total 8-ch GMSL3.0/2.0 with FAKRA connectors
- Support NVIDIA Isaac Robot Operating System (ROS2)
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| NVIDIA® CPU/GPU | NVIDIA® Jetson AGX Orin™ |
| CPU/GPU |
CPU: 12-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU, 3MB L2 + 6MB L3 |
| Memory | 64GB LPDDR5 |
| eMMC | 64GM eMMC |
| CAN | 2 x CANBus |
| USB |
External: 3 x USB 3.2 Gen 2, 2 x USB micro B, (1 from UART for debug) |
| Serial Ports | 2 x RS-232/422/485 (On-board pin header) |
| Mini PCIe | 1 x mPCIe (Signal: PCIe+USB 2.0) |
| SIM | 2 x Nano SIM slots |
| Expansion M.2 |
1 x M.2 3052 (B-Key) (Signal: USB 3.0+USB 2.0) |
| GMSL (Optional) | 8-ch GMSL3.0/2.0 with FAKRA connectors |
| iDoor (Optional) | 1 x iDoor bracket reserve |
| Storage M.2 | 1 x M.2 2280 (B/M-Key, NVMe, Signal: PCIe x4) |
| Display | 1 x HDMI Display |
| Ethernet |
1 x 10/100/1000/2500 Mbp |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
