MM1-0330T
MM1-0330T
Marki Microwave
GaAs MMIC Double Balanced Mixer
MM1-0330T is a GaAs MMIC double balanced mixer that features excellent conversion loss, superior isolations, and spurious performance across a broad bandwidth.
The MM1-0330T works well as both an up and down converter through the K band and beyond. The MM1-0330T is recommended for frequency conversion applications that require high linearity.

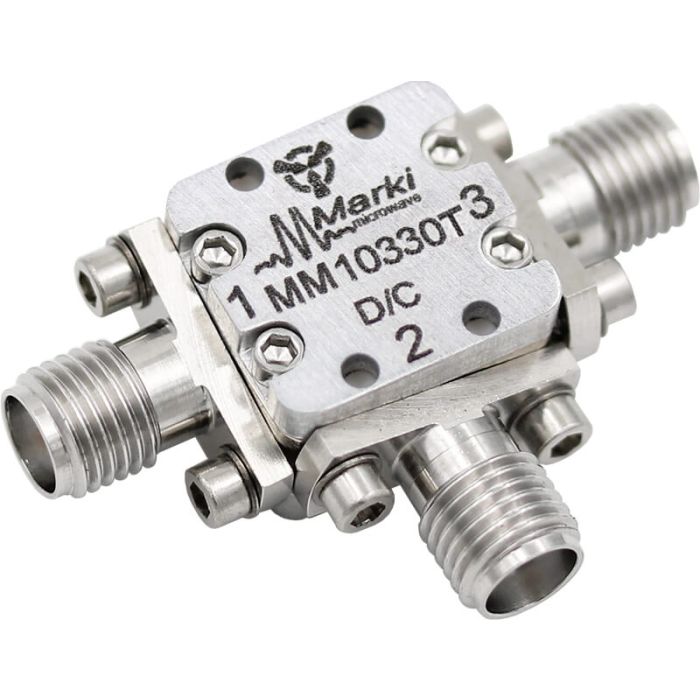

It is available as both wire bondable die and as a connectorised module.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Download The Marki Microwave Product Brochure
View Marki Microwave's full product range of RF, Microwave & mmWave Components Bare Die, Surface Mount and Connectorised DC to 140GHz.
| Attribute | Value |
|---|---|
| Key Features |
|
| Applications |
|
| IF (GHz) | DC to 5 |
| LO Drive Min (dBm) | +20 to +27 |
| Conversion Loss (dB) | 9 |
| Isolations L-R (dB) | 50 |
| RF/LO (GHz) Low | |
| RF/LO (GHz) High | |
| IIP3 (dBm) | +32 |
| Product Type | MMIC Bare Die/Modules |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
