MM1-1850S
MM1-1850S
Marki Microwave
GaAs Double-Balanced Mixer
The MM1-1850S is a high linearity passive double balanced MMIC mixer. The S diode offers superior 1 dB compression, two tone intermodulation performance, and spurious suppression to other GaAs MMIC mixers.
It features excellent conversion loss, superior isolations and spurious performance across a broad bandwidth, in a miniature form factor. Accurate, nonlinear simulation models are available for Microwave Office® through the Marki Microwave PDK.

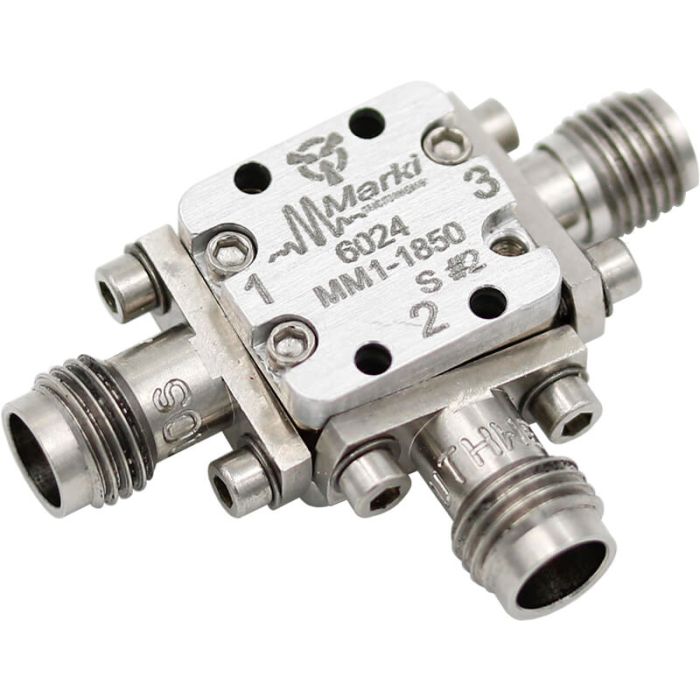

The MM1-1850S is available as a wire bondable chip or an SMA connectorised package. The MM1-1850S is a superior alternative to Marki Microwave carrier and packaged M9 mixers.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Download The Marki Microwave Product Brochure
View Marki Microwave's full product range of RF, Microwave & mmWave Components Bare Die, Surface Mount and Connectorised DC to 140GHz.
| Attribute | Value |
|---|---|
| Key Features |
|
| IF (GHz) | DC to 20 |
| LO Drive (dBm) | +17 to +23 |
| Conversion Loss (dB) | 8.5 |
| Isolations L-R (dB) | 43 |
| RF/LO (GHz) Low | 18 |
| RF/LO (GHz) High | 50 |
| IIP3 (dBm) | +25 |
| Product Type | MMIC Bare Die/Modules |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
