MMIQ-0218HSM
MMIQ-0218HSM
Marki Microwave
Broadband Drive Surface Mount MMIC IQ Mixer
The MMIQ-0218HSM is a broadband passive GaAs MMIC IQ mixer that operates across an unrivaled 2-18 GHz RF/LO band with an IF from DC to 3 GHz.
Excellent phase and amplitude balance of the on-chip LO quadrature hybrid leads to typical image rejection of 35 dB. This is the higher LO drive/higher linearity version of the popular MMIQ-0218LSM.

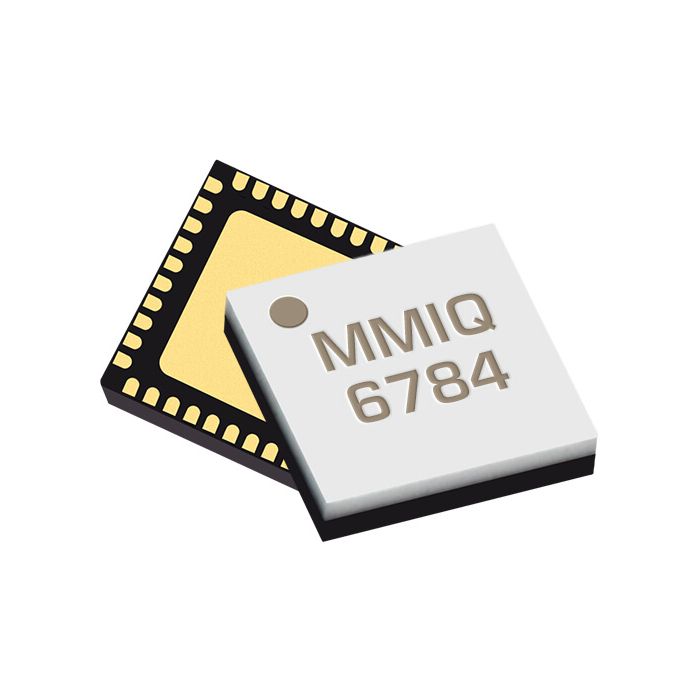

Surface mount QFNs and evaluation boards are available.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Download The Marki Microwave Product Brochure
View Marki Microwave's full product range of RF, Microwave & mmWave Components Bare Die, Surface Mount and Connectorised DC to 140GHz.
| Attribute | Value |
|---|---|
| Applications |
|
| IF (GHz) | DC to 3 |
| LO Drive Min (dBm) | +18 to +26 |
| Conversion Loss (dB) | 8 |
| Isolations L-R (dB) | 53 |
| Isolations L-I (dB) | 26.5 |
| RF/LO (GHz) Low | |
| RF/LO (GHz) High | |
| Image Rejection (dB) | 35 |
| Product Type | MMIC Surface Mounts |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
