MMIQ-1040HSM
MMIQ-1040HSM
Marki Microwave
Passive GaAs MMIC IQ Mixer
MMIQ-1040HSM is a high linearity, passive GaAs MMIC IQ mixer. This is an ultra-broadband mixer spanning 10 to 40 GHz on the RF and LO ports with an IF from DC to 10 GHz.
Up to 50 dB of image rejection is available due to the excellent phase and amplitude balance of its on-chip LO quadrature hybrid.

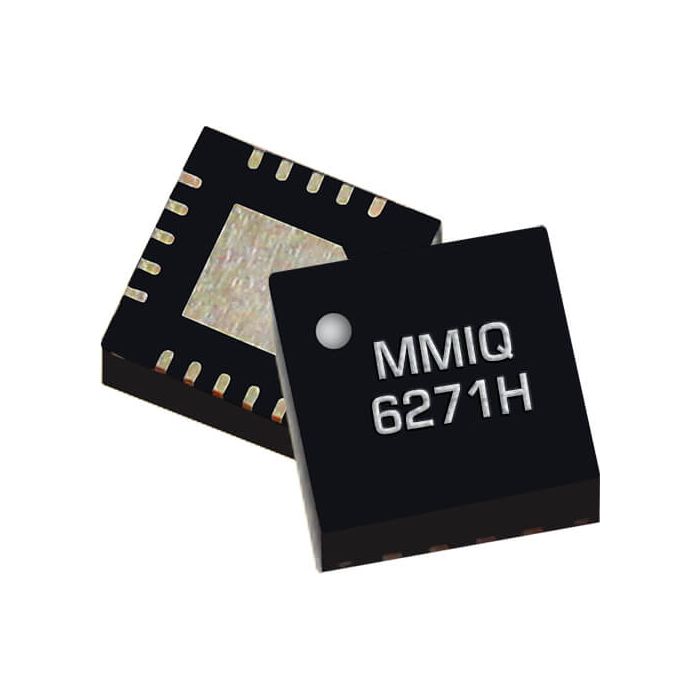

Both surface mount QFNs and evaluation boards are available.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Download The Marki Microwave Product Brochure
View Marki Microwave's full product range of RF, Microwave & mmWave Components Bare Die, Surface Mount and Connectorised DC to 140GHz.
| Attribute | Value |
|---|---|
| Applications |
|
| IF (GHz) | DC to 10 |
| LO Drive Min (dBm) | +15 to +25 |
| Conversion Loss (dB) | 9 |
| Isolations L-R (dB) | 40 |
| Isolations L-I (dB) | 50 |
| RF/LO (GHz) Low | |
| RF/LO (GHz) High | |
| Image Rejection (dB) | 35 |
| Product Type | MMIC Surface Mounts |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
