Hioki MR8740 Memory HiCorder | APC Technology Group

MR8740

MR8740

Hioki

Memory HiCorder

Single-device Solution for Waveform Recording and Generation, High-speed 54-channel/Isolated Multi-channel System Recorders (rack-mounted)

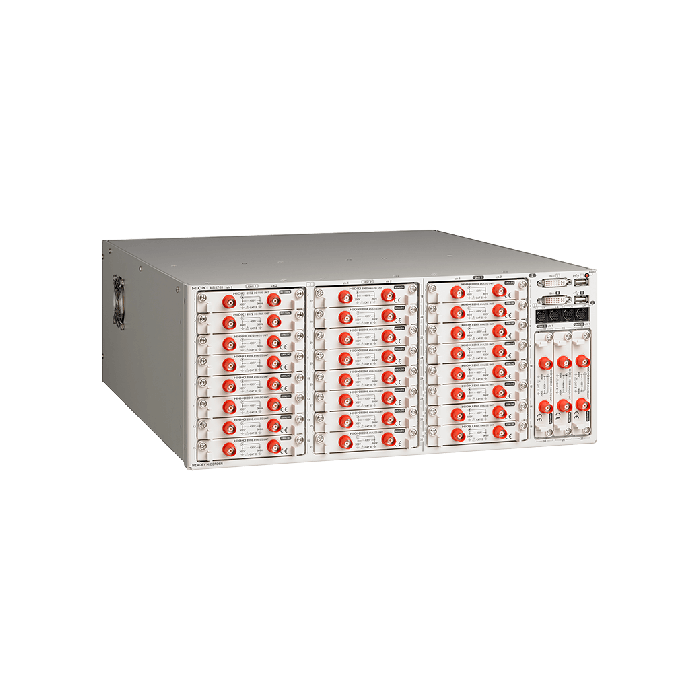

The MR8740 is rack-mountable data acquisition system that delivers high-speed, multi-channel measurements over maximum of 32+22 channels. The MR8990 DVM module is a 2-channel input unit for the MR8740 for measuring minute fluctuations in output from sensors in automobiles and other equipment and voltage fluctuations in devices such as batteries at high levels of precision and resolution.

Use with the Arbitrary Waveform Generator Unit U8793 to create a function generator, arbitrary waveform generator, and waveform measurement in a single device.

Key Features

  • Introducing the DVM Unit MR8990 with high 24-bit resolution! Perform high-speed, high-accuracy measurement without going through a scanner.
  • Support for multi-channel measurement (MR8740: up to 54 ch)
  • Isolated input (between input channels; input-to-chassis isolation: maximum input-to-ground rated voltage of 300 V AC/DC)
  • High-speed sampling (max. 20 MS/s; with 54-ch type, simultaneous sampling of up to 32 ch)
  • Ideal for rack-mounting (4U height/within 180 mm; display-less, box-type design)
  • Display waveforms and make settings on a DVI-D connected monitor and mouse
  • Remote measurement via LAN using control commands from a PC (*1)



*1: Screen monitoring and remote operation available via Internet browser. For faster and more convenient remote operation, we recommend using the Hioki 9333 LAN Communicator.

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Power Supply 100 to 240 V AC, 50/60 Hz (250 VA max.)
Dimensions and Weight 426 mm (16.77 in) W × 177 mm (6.97 in) H × 505 mm (19.88 in) D, 10.8 kg (381.0 oz) (main unit only)
Included Accessories Instruction manual × 1, Application disk (Wave viewer Wv, Communication commands table) × 1, Power cord × 1
Number of Channels

[Block I] 32 ch analogue + 8 ch logic, or 29 ch analogue + 56 ch logic (when used with built-in logic input + plug-in logic unit 8973 × 3)

[Block II] 22 ch analogue + 8 ch logic, or 19 ch analogue + 56 ch logic (when used with built-in logic input + plug-in logic unit 8973 × 3)

Measurement Ranges

5 mV to 20 V/div, 12 ranges, resolution : 1/100 of range (when using 8966)

5 mV to 50 V/div, 5 ranges, resolution : 1/50,000 of range (when using MR8990)

Max Rated Voltage to Earth 300 V AC/DC (input and instrument are isolated; between input channels and chassis; upper limit voltage that can be applied between input channels without damage)
Frequency Characteristics DC to 5 MHz (-3 dB, when using 8966)
Measurement Functions Memory (high-speed recording), FFT
Memory Capacity 16 MW/ch (fixed), total of 864 MW installed
Removable Storage USB memory stick (USB 2.0)
External Interfaces [LAN] 100Base-TX (DHCP and DNS support, FTP server, HTTP server) [USB] USB 2.0 Series A receptacle × 2 (mouse operation)
Display None (1 digital DVI terminal per block, 800 × 600 dots)
Number of Slots

[Block I] 16 slots (Max. 16)

[Block II] 11 slots (Max. 11)

[Limitation on number of slots] when using the Current Unit 8971: Max. 4,

When using the Logic Unit 8973: [Block I] Max. 3; cannot use slots 9 to 16

[Block II] Max. 3; cannot use slots 9 to 11

Number of Logic Channels

[Block I] 8 ch logic (Logic probe terminal GND share a common GND with chassis.)

[Block II] 8 ch logic (Logic probe terminal GND share a common GND with chassis.)

[Limitation on using built-in logic input] applies to both Block I and Block II (with logic measurement ON)
- Measurement resolution on slots 1 and 2 is limited up to 12 bits
- Cannot use Frequency Unit 8970 on slots 1 and 2
- When using the DVM Unit MR8990 on slots 1 or 2: cannot use built-in logic input

Time Axis (Memory Function) 5 µs to 5 min/div; 26 ranges; time axis resolution: 100 points/div; time axis expansion: 3 stages from ×2 to ×10; compression: 13 stages from 1/2 to 1/20,000
More Information
Attribute Value
Data Sheet Click here to view
