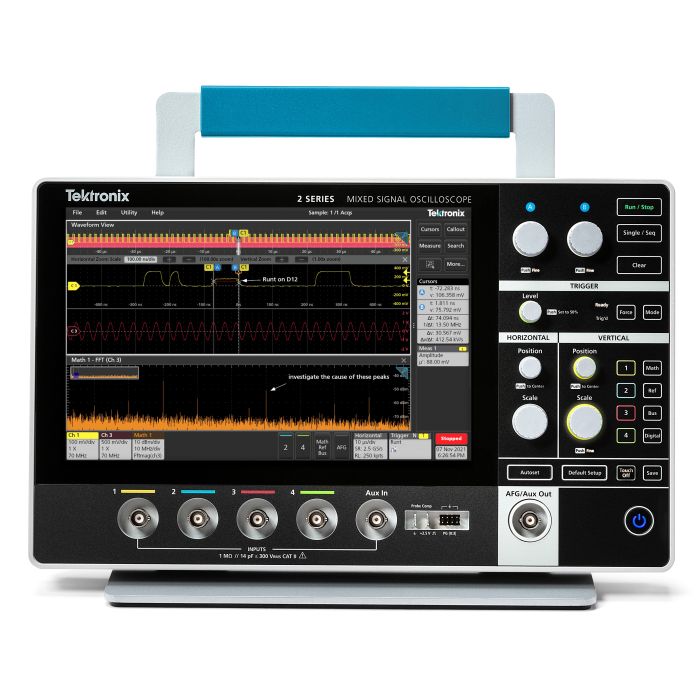

MSO24
MSO24
Tektronix
Mixed Signal Oscilloscope: 4 analog channels, 2.5 GS/s sample rate, 10 Mpts record length
This item is in stock and can be delivered in 3-5 business days
Contact our team for details on [email protected]
The 2 series MSO unlocks more space on your bench without compromising performance.
The thin, portable, and lightweight 2 Series MSO offers bandwidths from 70 MHz to 500 MHz and 2.5 GS/s max sample rate.
Available with either two or four channels, the 2 Series MSO features a capacitive touchscreen, and can be equipped with several options incl. 16-channel MSO, 50 MHz function generator, and 4-bit pattern generator.
An optional battery pack lets you take it easily from your bench to the field or wherever your measurements take you.
| • Thin, Lightweight Design | • Software Enabled |
| • Battery Powered | • Serial Decode |
| • Modern Touchscreen Display | • All-in-One Convenience |
| • Full Featured Analysis | • VESA Mount and Accessories |
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Discover Tektronix's factory service plans
Protect your investment and your uptime with Tektronix's service plans, review each plan and choose which is best for you.
| Attribute | Value |
|---|---|
| Manufacturer Product Family | 3 Series MSO Mixed Signal Oscilloscope |
| Key Features |
|
| Sample Rate | 2.5 GS/s |
| Record Length | 10 M Points |
| Bandwidth | 70 MHz to 500 MHz |
| Channels | 4 |
| Whats Included |
|
| Dimensions |
Instrument only Height 210 mm (8.26 in) Width 344 mm (13.54 in) Depth 40.4 mm (1.59 in) Instrument with battery pack Height 210 mm (8.26 in) Width 344 mm (13.54 in) Depth 78 mm (3.07 in) |
| Bandwidth Option |
|
| Add Functionality |
2-P6139B |
| Add Instrument Software |
2-SOURCE |
| Series | 2 Series Portable MSO |
| Attribute | Value |
|---|---|
| Applications |
|
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
