Tektronix MSO56B Oscilloscope | APC Technology Group

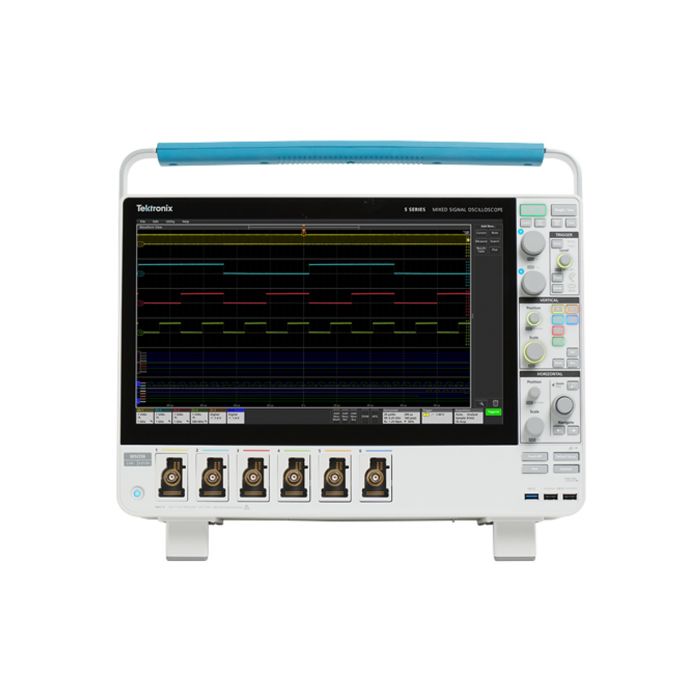

MSO56B

MSO56B

Tektronix

Mixed Signal Oscilloscope; (6) FlexChannels with 62.5M record length, 1-year warranty

Get a complete view of your design with high-fidelity waveforms, insightful measurements, unique spectrum analysis, and flexible probing. Experience the intuitive user interface appreciated by engineers everywhere.

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Discover Tektronix's factory service plans

Protect your investment and your uptime with Tektronix's service plans, review each plan and choose which is best for you.

Power Solution Bundle - 50% Discount

Take advantage of our probe and software bundle offer for 4 Series MSO, 5 Series MSO or 6 Series MSO.

More Information
Attribute Value
Manufacturer Product Family 5 Series B MSO Mixed Signal Oscilloscope
Key Features

Input channels

  • 6 FlexChannel® inputs
  • Each FlexChannel provides:
    • One analogue signal that can be displayed as a waveform view, a spectral view, or both simultaneously
    • Eight digital logic inputs with TLP058 logic probe

Bandwidth (all analogue channels)

  • 350 MHz, 500 MHz, 1 GHz, 2 GHz (upgradable)

Sample rate (all analogue / digital channels)

  • Real-time: 6.25 GS/s
  • Interpolated: 500 GS/s

Record length (all analogue / digital channels)

  • 62.5 Mpoints standard
  • 125, 250, 500 Mpoints, (optional)

Waveform capture rate

  • >500,000 waveforms/s

Vertical resolution

  • 12-bit ADC
  • Up to 16-bits in High Res mode

Standard trigger types

  • Edge, Pulse Width, Runt, Timeout, Window, Logic, Setup & Hold, Rise/Fall Time, Parallel Bus, Sequence, Visual Trigger, Video (optional), RF vs. Time (optional)

Standard analysis

  • Cursors: Waveform, V Bars, H Bars, V&H Bars
  • Measurements: 36
  • Spectrum View: Frequency-domain analysis with independent controls for frequency and time domains
  • FastFrameTM: Segmented memory acquisition mode with maximum trigger rate >5,000,000 waveforms per second
  • Plots: Time Trend, Histogram, Spectrum and Phase Noise
  • Math: Basic waveform arithmetic, FFT, and advanced equation editor
  • Search: Search on any trigger criteria
  • Jitter: TIE and Phase Noise
Sample Rate 6.25 GS/s
Record Length 62.5 M - 500 M points
Bandwidth 350 MHz to 2 GHz
Channels 6
Series 5 Series B MSO
More Information
Attribute Value
Data Sheet Click here to view
