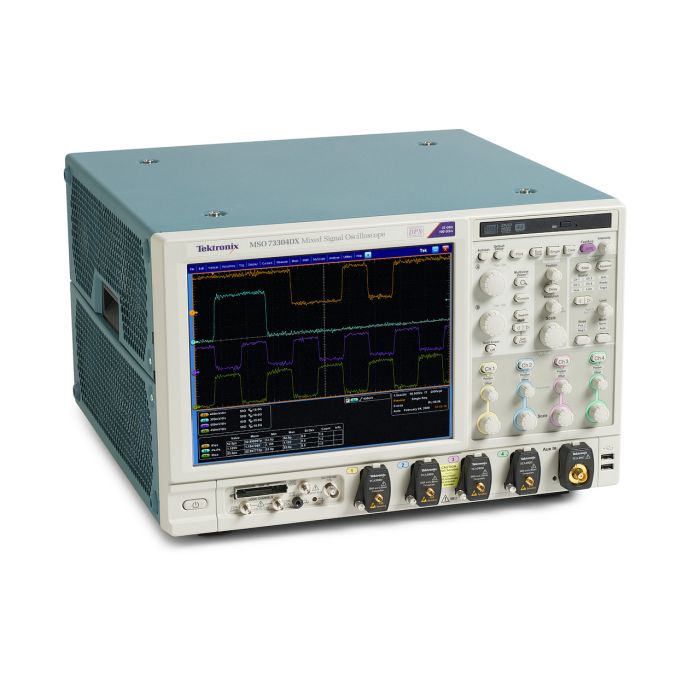

The MSO/DPO70000 is one of the most advanced oscilloscopes in its class—enabling today's engineer to see signals better with minimal noise, debug signal anomalies faster and utilise measurement and analysis tools for automated compliance testing and other verifications. In addition, the MSO/DPO70000 is perfect for analogue/digital design and debug, data communications and high-speed serial communications. See how you can use the MSO/DPO70000 for your next project to find and analyze a wide range of mixed-signal anomalies.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Up to 33 GHz analogue bandwidth and rise time as fast as 9 ps. Enables measurement on the latest high-speed serial standards
True 33 GHz Real-time analogue Bandwidth on 2 Channels with 33 GHz models
Industry-leading sample rate and timing resolution
100 GS/s on 2 Channels
Four-channel Simultaneous Performance
Up to 23 GHz Bandwidth
Up to 50 GS/s Real-time Sample Rate
Up to 500 Megasample Record Length with MultiView Zoom™ for quick navigation
Fastest Waveform Capture Rate with >300,000 wfms/s maximum per channel
16 Logic Channels with 80 ps Timing Resolution for Debug of digital and analogue signals
Unique iCapture® capability enables viewing analogue characteristics of digital channels with single probe connection
6.25 Gb/s Real-time Serial Trigger – Assures triggering on the first instance of a specified NRZ or 8b/10b pattern to allow isolation of pattern-dependent effects
Application Support for High-speed Serial Industry Standards, wideband RF, Power supplies, and memory – Enables standardspecific certification, measurement automation, and ease of use
Key features
Superior signal integrity and excellent signal-to-noise ratio – observe the truest representation of your waveform
Pinpoint® triggering – minimize time spent trying to acquire problem signals for efficient troubleshooting and shortened debug time
Visual Trigger – precisely qualify triggers and find unique events in complex waveforms
Search and Mark – provides waveform or serial bus pattern matching and software triggers for signals of interest
Automated Serial Analysis options for PCI Express, 8b/10b encoded serial data, I2C, SPI, CAN, LIN, FlexRay, RS-232/422/485/UART, USB 2.0, HSIC, MIL-STD-1553B, and MIPI® C-PHY, D-PHY and M-PHY
P7700, P7600, and P7500 TriMode™ probing system – perfectly matched signal connectivity, with calibration to probe tip
P6780, P6750, and P6717A high-performance 17-channel logic probes with bandwidths up to 2.5 GHz for connections to today's fast digital signals
Connectivity
USB 2.0 host port on both the front panel and rear panel for quick and easy data storage, printing, and connecting a USB keyboard
Integrated 10/100 Ethernet port for network connection and Video Out port to export the oscilloscope display to a monitor or projector
