MT3H-0113HSM
MT3H-0113HSM
Marki Microwave
GaAs MMIC High Dynamic Range Mixer
The MT3H-0113HSM is a triple balanced passive diode mixer offering high dynamic range, low conversion loss, and excellent repeatability. As with all T3 mixers, this mixer offers unparalleled nonlinear performance in terms of IIP3, P1dB, and spurious performance with a flexible LO drive requirement from +16 dBm to +24 dBm. RF, LO, and IF ports are all operated single ended due to integrated baluns.

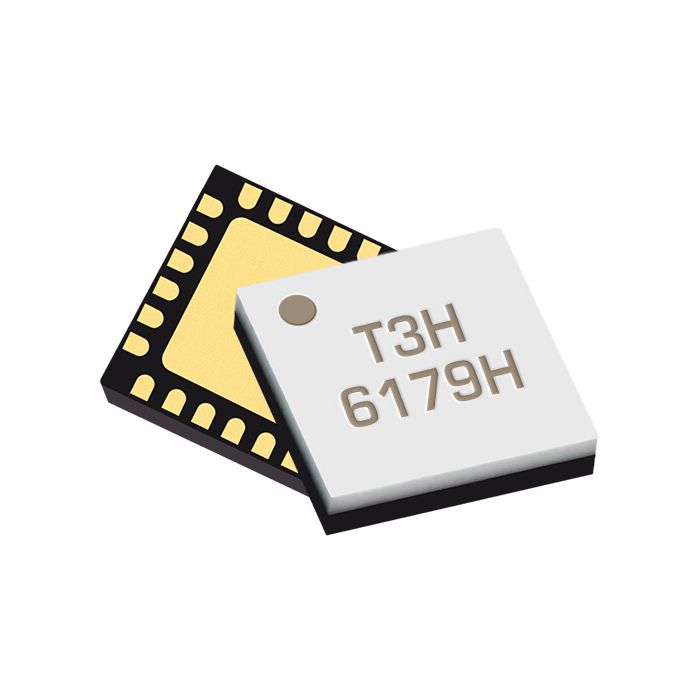

The MT3H-0113HSM is available in a 4x4mm QFN, or in an SMA connectorised evaluation fixture. The MT3H-0113HSM is a superior alternative to Marki Microwave carrier and packaged T3 mixers.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Download The Marki Microwave Product Brochure
View Marki Microwave's full product range of RF, Microwave & mmWave Components Bare Die, Surface Mount and Connectorised DC to 140GHz.
| Attribute | Value |
|---|---|
| Key Features |
|
| IF (GHz) | 0.8 to 8.5 |
| LO Drive (dBm) | +16 to +24 |
| Conversion Loss (dB) | 8 |
| Isolations L-R (dB) | 37 |
| RF/LO (GHz) Low | 1.5 |
| RF/LO (GHz) High | 13 |
| IIP3 (dBm) | +29 |
| Product Type | T3 Mixer |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
