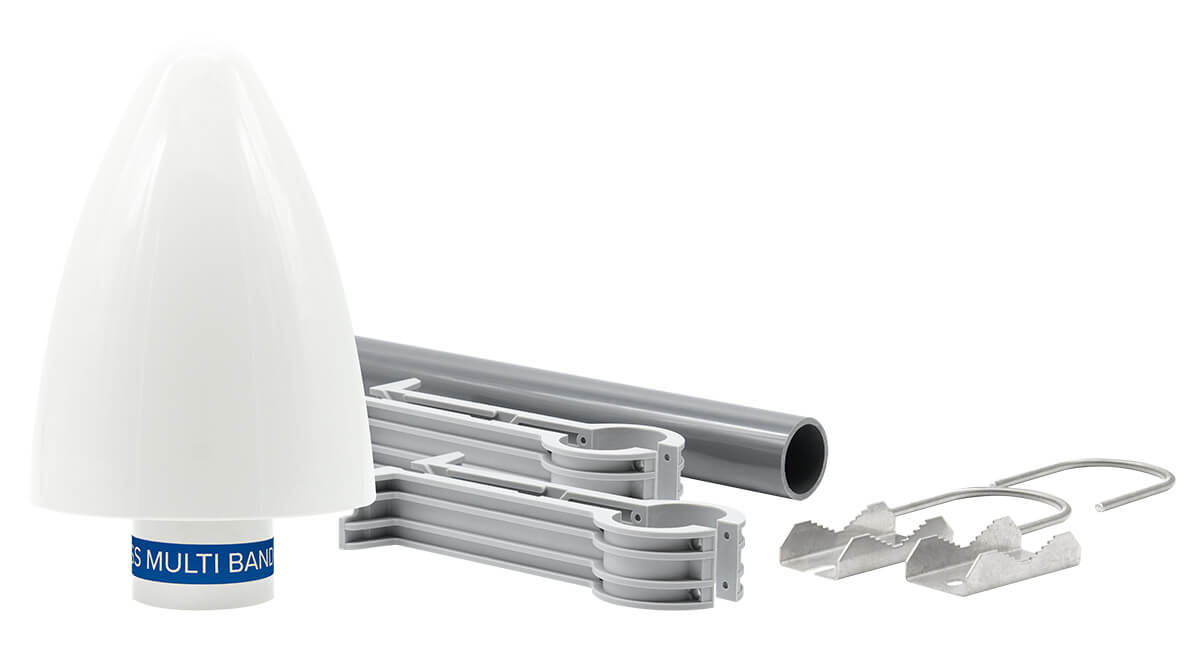

Meinberg GNMANTv2 - A Next Generation Dual-Band GNSS Antenna for Time and Frequency Synchronisation
- Rob Skinner
- Insights & Events
- 15 Jul 2025
Meinberg's GNMANTv2 is a powerful antenna with strong out-of-band rejection for comprehensive multi-GNSS and augmentation service support.
As the exclusive distribution partner of Meinberg in the UK and Ireland, APC Technology Group is pleased to support the launch of the GNMANTv2 - Meinberg’s advanced GNSS antenna developed for high-precision time and frequency synchronisation. The GNMANTv2 supports the reception of a wide range of global GNSS signals, along with multiple regional SBAS constellations and various commercial GNSS data authentication and validation solutions. It has been designed to be fully compatible with, and optimised for use alongside, Meinberg’s GNS, GNM, and GXL series receivers.
With dual-band reception technology and a narrowband frontend filter, the GNMANTv2 is optimised for rejection of out-of-band signals such as LTE and 5G that lie not only outside of the standard GNSS L-band range but also in the 1256-1540 MHz range that is not used by any civil GNSS or SBAS service. A frontend high-gain LNA ensures that low-power GNSS signals are better amplified with a superior signal-to-noise ratio.
Reliable Operation In All Environments
The antenna is housed in an IP65-rated enclosure and is rated for operating temperatures from -70 °C to +85 °C (-94 °F to +185 °F), ensuring that it can continue providing reliable operation even in the most extreme weather conditions, from searing deserts to arctic conditions to heavy rainfall.
The GNMANTv2 is the precursor to Meinberg's ambitions for a groundbreaking evolution of its GNSS synchronisation technology, paving the way for many new incredible synchronisation applications geared towards enhanced GNSS security, advanced monitoring applications, and greater synchronisation performance.
With the launch of the GNMANTv2, Meinberg is discontinuing the production and distribution of the original GNSS Multi-Band Antenna ("GNMANTv1"), and will also cease distribution of the PCTEL GPSL1GL-TMG-40N antenna. All GNS, GNM, and GXL type receivers will be shipped as standard from now with the new GNMANTv2 antenna. Owners of the original GNSS Multi-Band Antenna will of course continue to receive the same expert support from APC and Meinberg over the lifetime of their antennas and clocks that they have come to expect beyond its phase-out. Should it be necessary to replace a GNSS Multi-Band Antenna unit under warranty, customers will receive the newer GNMANTv2 antenna at no extra charge as a replacement.
Supporting Time and Frequency Synchronisation Requirements Throughout The UK And Ireland
As Meinberg’s exclusive technical distribution partner in the UK and Ireland, we are committed to providing expert guidance, responsive local support, and tailored solutions to meet the evolving demands of precision timing and synchronisation across critical sectors. The GNMANTv2 represents a significant advancement in GNSS antenna technology, offering enhanced performance, broader compatibility, and future-ready capabilities. We invite system integrators, solution architects, and technical procurement teams to engage with us to explore how the GNMANTv2 can be deployed to strengthen your timing infrastructure and ensure long-term operational resilience.
Start A Technical Conversation With A Time Synchronisation Expert
Our team are on hand to answer your questions, provide additional technical insight and arrange product demos to help you find the solutions you need for your projects. In addition to Meinberg's Antennas, our team have a wealth of knowledge on Meinberg's comprehensive range of PTP time and frequency solutions for a wide range of industries.
