R10L100-GCT2-C
R10L100-GCT2-C
Winmate
10.4" 1024 x 768 USB Type-C Chassis Display, PCAP touch

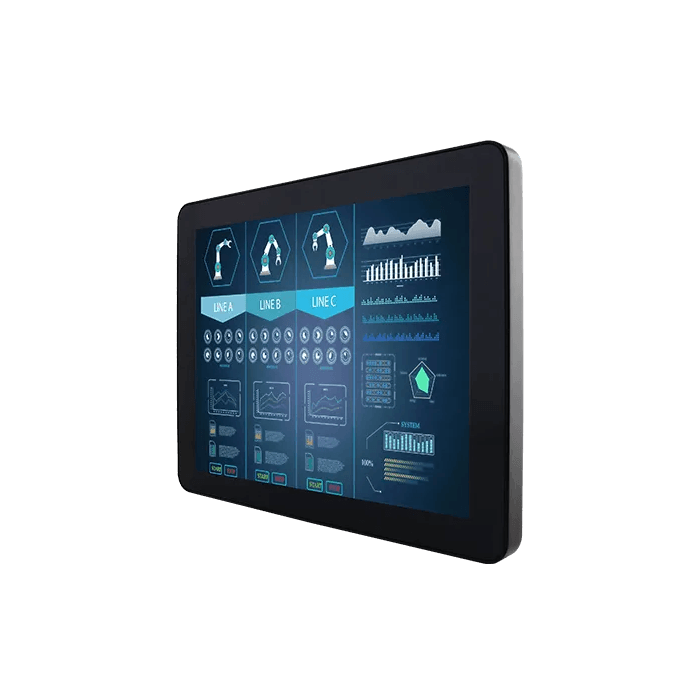

The Winmate R10L100-GCT2-C is a 10.4" (1024 x 768) USB Type-C chassis display built for industrial and commercial environments. Its 10.4-inch 4:3 panel and aluminium chassis suit machine-side HMI and control-panel use.
Part of Winmate's USB Type-C Chassis Display Series, it uses a single USB Type-C connector that integrates power, video input, and touch in one cable for simple, clutter-free installation. With projected-capacitive multi-touch, front IP65 water and dust resistance, a fanless design, and VESA/panel mounting, it is suited to applications such as retail, automation, and control systems.
Key Features:
- 10.4", 1024 x 768 resolution
- Single USB Type-C connector (power, video and touch)
- Projected capacitive (PCAP) multi-touch
- Front IP65 water and dust resistance
- VESA / panel mount support
- Fanless design
- 1000:1 contrast ratio
- Aluminium enclosure
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries, call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Display | 10.4" 1024 x 768; 350 nits; contrast 1000:1; 16.2M colours; viewing angles 88/88/88/88 |
| Additional Key Buttons | 5 keys: -, +, Power, Esc, Enter |
| Fanless Design | Yes |
| IP Certified | Front IP65 |
| I/O Ports | 1 x USB Type-C connector (single-cable power, video and touch); 1 x speaker (optional) |
| Notes | Enclosure: aluminium. Mounting: VESA Mount/Panel Mount. Operating humidity 10-90% RH, non-condensing. Certification: CE, FCC. Accessories: user manual; optional locking/waterproof/dual-side USB-C cables. |
| Operating Temperature | 0~50°C |
| Storage Temperature | -10~60°C |
| Touchscreen | Projected capacitive multi-touch; protection glass (optional) |
| Dimensions | 252.41 x 197.8 x 41.4 mm |
