W10L100-GCH2-C
W10L100-GCH2-C
Winmate

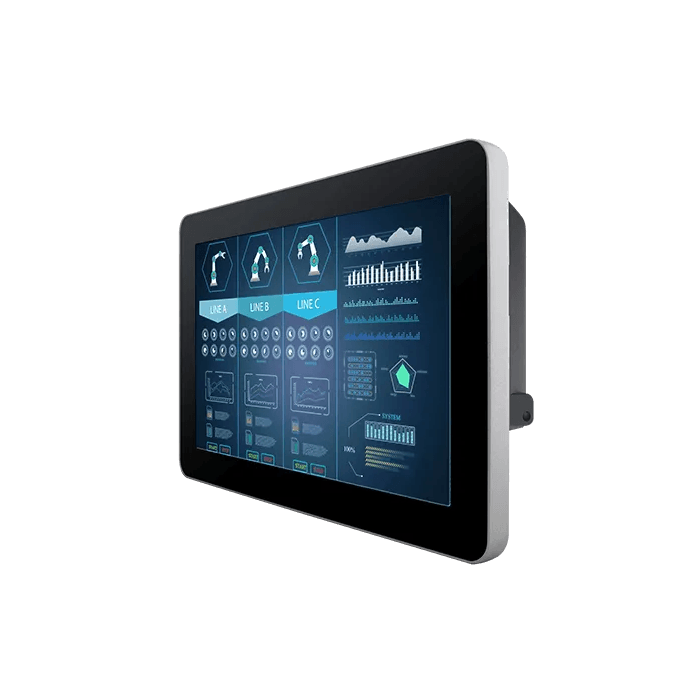

10.1" 1280 x 800 USB Type-C Chassis Display, PCAP touch
The Winmate W10L100-GCH2-C is a 10.1" (1280 x 800) USB Type-C chassis display built for industrial and commercial environments. Its 1280 x 800 widescreen panel offers extra resolution, with an optional 1000-nit high-brightness version available.
Part of Winmate's USB Type-C Chassis Display Series, it uses a single USB Type-C connector that integrates power, video input, and touch in one cable for simple, clutter-free installation. With projected-capacitive multi-touch, front IP65 water and dust resistance, a fanless design, and VESA/panel mounting, it is suited to applications such as retail, automation, and control systems.
Key Features:
- 10.1", 1280 x 800 resolution
- Single USB Type-C connector (power, video and touch)
- Projected capacitive (PCAP) multi-touch
- Front IP65 water and dust resistance
- VESA / panel mount support
- Fanless design
- Optional 1000-nit high-brightness panel
- Optional anti-glare coating
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries, call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Display | 10.1" 1280 x 800; 350 nits (1000 nits optional); contrast 800:1; 16.7M colours; viewing angles 85/85/85/85; active area 216.96 x 135.6 mm |
| Additional Key Buttons | 5 keys: -, +, Power, Esc, Enter |
| Fanless Design | Yes |
| IP Certified | Front IP65 |
| I/O Ports | 1 x USB Type-C connector (single-cable power, video and touch); 1 x speaker (optional) |
| Notes | Enclosure: plastic bezel & aluminium back cover. Mounting: VESA Mount/Panel Mount. Operating humidity 10-90% RH, non-condensing. Certification: CE, FCC. Accessories: user manual; optional locking/waterproof/dual-side USB-C cables. |
| Operating Temperature | 0~50°C |
| Storage Temperature | -10~60°C |
| Touchscreen | Projected capacitive multi-touch; protection glass (optional); anti-glare coating (optional) |
| Dimensions | 263.3 x 172 x 40.2 mm |
