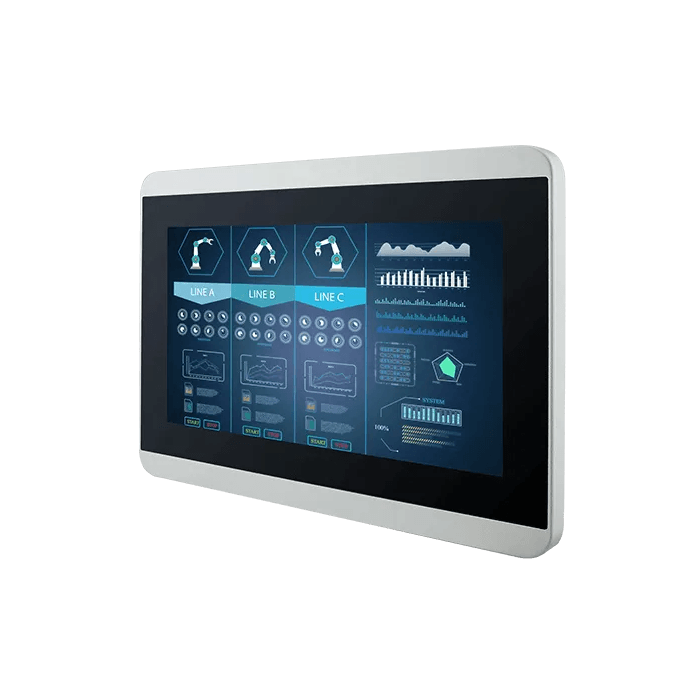

W07L100-GCT1-C
W07L100-GCT1-C
Winmate
7" 1024 x 600 USB Type-C Chassis Display, PCAP touch
The Winmate W07L100-GCT1-C is a 7" (1024 x 600) USB Type-C chassis display built for industrial and commercial environments. Its compact 7-inch form factor fits space-constrained panels, kiosks, and machine enclosures.
Part of Winmate's USB Type-C Chassis Display Series, it uses a single USB Type-C connector that integrates power, video input, and touch in one cable for simple, clutter-free installation. With projected-capacitive multi-touch, front IP65 water and dust resistance, a fanless design, and VESA/panel mounting, it is suited to applications such as retail, automation, and control systems.
Key Features:
- 7", 1024 x 600 resolution
- Single USB Type-C connector (power, video and touch)
- Projected capacitive (PCAP) multi-touch
- Front IP65 water and dust resistance
- VESA / panel mount support
- Fanless design
- Aluminium enclosure
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries, call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Display | 7.0" 1024 x 600; 320 nits; contrast 500:1; 16.7M colours; viewing angles 75/75/75/70 |
| Additional Key Buttons | 5 keys: -, +, Power, Esc, Enter |
| Fanless Design | Yes |
| IP Certified | Front IP65 |
| I/O Ports | 1 x USB Type-C connector (single-cable power, video and touch); 1 x speaker (optional) |
| Notes | Enclosure: aluminium. Mounting: VESA Mount/Panel Mount. Operating humidity 10-90% RH, non-condensing. Certification: CE, FCC. Accessories: user manual; optional locking/waterproof/dual-side USB-C cables. |
| Operating Temperature | 0~50°C |
| Storage Temperature | -10~60°C |
| Touchscreen | Projected capacitive multi-touch; protection glass (optional) |
| Dimensions | 189.4 x 145.4 x 39.8 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
