W15L100-PTA3-C
W15L100-PTA3-C
Winmate
15.6" 1920 x 1080 USB Type-C Chassis Display, PCAP touch

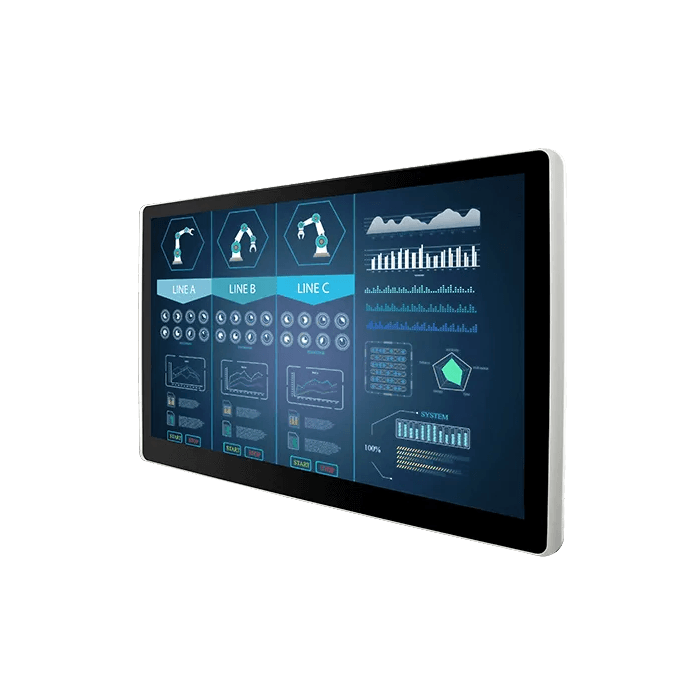

The Winmate W15L100-PTA3-C is a 15.6" (1920 x 1080) USB Type-C chassis display built for industrial and commercial environments. Its 15.6-inch Full HD (1920 x 1080) panel delivers sharp, detailed widescreen visuals.
Part of Winmate's USB Type-C Chassis Display Series, it uses a single USB Type-C connector that integrates power, video input, and touch in one cable for simple, clutter-free installation. With projected-capacitive multi-touch, front IP65 water and dust resistance, a fanless design, and VESA/panel mounting, it is suited to applications such as retail, automation, and control systems.
Key Features:
- 15.6", 1920 x 1080 resolution
- Single USB Type-C connector (power, video and touch)
- Projected capacitive (PCAP) multi-touch
- Front IP65 water and dust resistance
- VESA / panel mount support
- Fanless design
- Full HD 1920 x 1080 resolution
- Dual speakers (optional)
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries, call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Display | 15.6" 1920 x 1080; 400 nits; contrast 800:1; 262K colours; viewing angles 85/85/85/85; active area 344.16 x 193.59 mm |
| Additional Key Buttons | 5 keys: -, +, Power, Esc, Enter |
| Fanless Design | Yes |
| IP Certified | Front IP65 |
| I/O Ports | 1 x USB Type-C connector (single-cable power, video and touch); 2 x speaker (optional) |
| Notes | Enclosure: plastic. Mounting: VESA Mount. Operating humidity 10-90% RH, non-condensing. Certification: CE, FCC. Accessories: user manual; optional locking/waterproof/dual-side USB-C cables. |
| Operating Temperature | 0~50°C |
| Storage Temperature | -10~60°C |
| Touchscreen | Projected capacitive multi-touch |
| Dimensions | 387.8 x 232.9 x 40 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
