3D3D8G32YB1741

3D3D8G32YB1741

3D Plus

1.35V, 8Gb DDR3 SDRAM organised as 256M x32

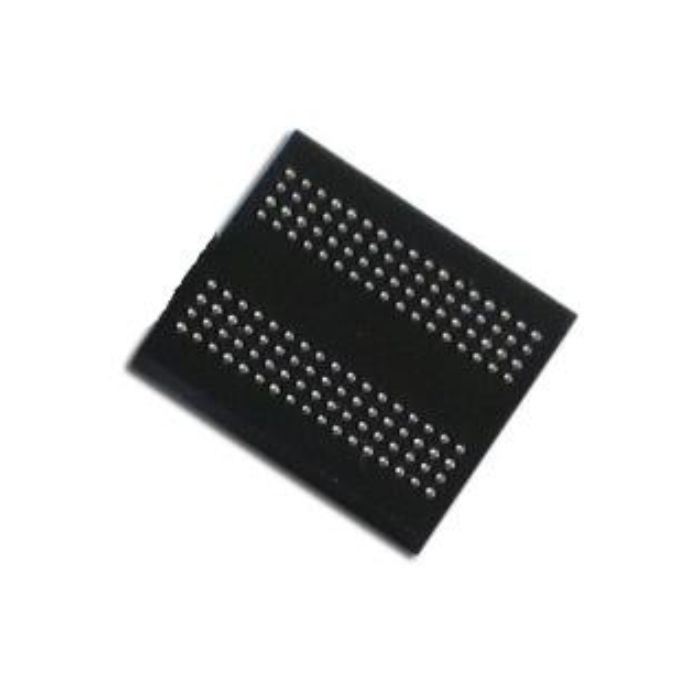

The 3D3D8G32WB1741 / 3D3D8G32YB1741 is a high speed stack multi-chip package integrated 4Gbits x 2 DDR3 SDRAM and fabricated with ultra high performance CMOS process containing 8 Gbits which is organised as 32Mbits x 8 banks by 32 bits.

This synchronous device achieves a high speed double-data-rate transfer rates of up to 1600 Mb/sec/pin (DDR3-1600) for general applications. The chip is designed to comply with the following key DDR3 SDRAM features: (1) posted CAS by programmable additive latency, (2) On Die Termination (3) programmable driver strength data,(4) clock rate of 1600Mbps. All the control and address inputs are synchronised with a pair of externally supplied differential clocks.

Inputs are latched at the cross point of differential clocks (CK rising and /CK falling). All I/Os are synchronised with a pair of bidirectional differential data strobes (DQS and /DQS) in a source synchronous fashion. The address bus is used to convey row, column and bank address information in a /RAS and /CAS multiplexing style. The 8Gb DDR3 devices operates with a single power supply: 1.35V or 1.5V for VDD and VDDQ. This device is ideal for high density memory applications that require high speed transfer and compatibility with standard servers and networking equipment.

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Product Type DDR3 SDRAM
Data_Sheet

To request a datasheet, contact a member of our high-reliability team [email protected]

Configuration 256M x32
Package FBGA 136
Temperature Range
  • -40°C to +85°C
  • -40°C to +95°C
  • -55°C to +125°C
Power Supply 1.35V or 1.5V
Features
  • JEDEC Standard ball-out
  • Combines two 4 Gb x 16 devices
  • VDD/VDDQ = 1.35V (1.283V to 1.45V) or 1.5V (1.425V to 1.575V)
  • Differential clock inputs (CK, /CK) operation
  • Posted CAS by programmable additive latency
  • Burst length: 8 (BL8) and Burst Chop 4 (BC) modes
  • Bi-directional Differential Data Strobe (DQS)
  • DLL aligns DQ and DQS transitions with CK
  • Commands entered on each positive CK transition
  • Data and data mask are referenced to both edges of a differential data strobe pair (Double data rate)
  • Programmable read burst : interleave or nibble sequential
  • Multi Purpose Register (MPR) for pre-defined pattern read out
  • Programmable on-die termination (ODT)
  • Refresh: Self-refresh, Auto Self-refresh and Partial array Self-refresh
  • High Temperature Self-Refresh rate enable
  • ZQ calibration for DQ drive and ODT
