SM9001
SM9001
Hioki

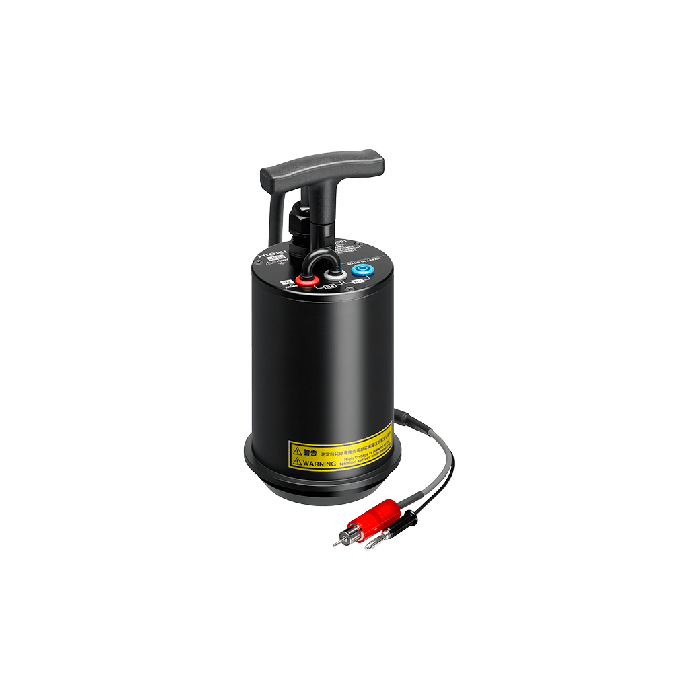

Surface/Volume Resistance Measurement Electrode
Measure the Surface and Volume Resistance of Test Objects without the Need to Cut Samples
Hioki Super Megohmmeters are high-insulation resistance meters designed to measure the electrical resistance of insulation materials with high-insulating properties. The Hioki SM9001 is an optional electrode device to pair with the SM7000 series to meet applications ranging from evaluation of electrostatic countermeasures to high-resistance measurement in materials development and other fields.
*When used with the SM7000 series, the Z5010 conversion adapter is required.
Key Features
- Electrodes compliant with the JIS C 2170 and IEC 61340-2-3 standards
- Measurement voltage up to 1,000 V, and measurement resistance up to 10^13 Ω
- Surface and volume resistance of sheets and films can be measured just as they are without the need to cut samples
- Measure the surface resistance of anti-static flooring and moulded products
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Attribute | Value |
---|---|
Included Accessories | Instruction manual ×1, Counter-electrode with integrated stand ×1, Protective stand ×1, Carrying case (with lock) ×1, Short bar ×1, Counter-electrode connection cable ×1 |
Dimensions and Weight |
Dimensions: φ 100 mm (3.94 in) × 223 mm (8.78 in) |
Attribute | Value |
---|---|
Data Sheet | Click here to view |
