SME-8330
SME-8330
Hioki

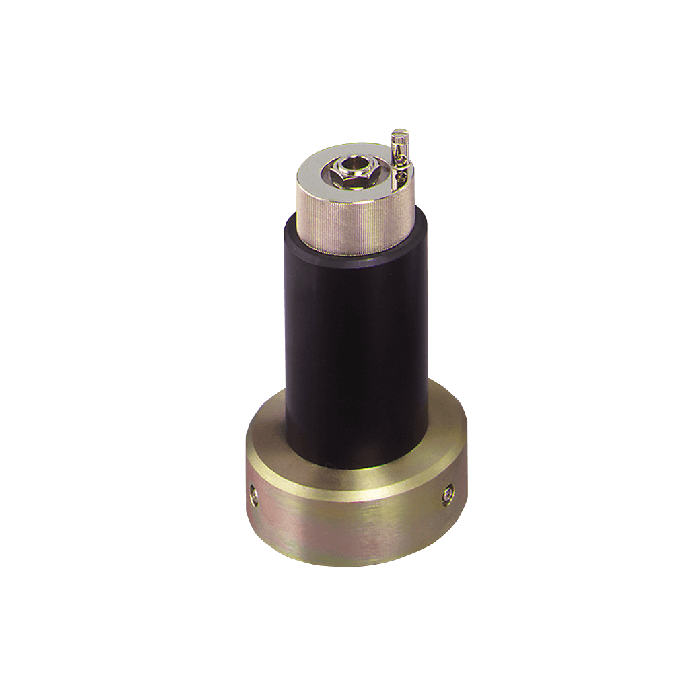

Liquid Sample Electrode
Measure the Resistivity of Electrically Guarded Liquid Samples
Hioki Super Megohmmeters are high-insulation resistance meters designed to measure the electrical resistance of insulation materials with high insulating properties. The SME-8330 is used for measuring the insulation resistance or volume resistance of liquid samples, and consists of main and counter electrodes and a protection electrode or guard which removes leakage current through the insulator to sustain the electrodes.
Electrode for liquid samples which is electrically guarded. Total volume is 25 ml. Capacitance between main and counter electrode is approx. 45 pF. Electrode constant is approx. 500 cm. Distance between both electrodes is 1 mm. Outer dia. is 36 mm, height is approx. 140 mm. Measure resistance up to 10^19Ω (at 1000 V) when used together with Model SM-8216.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Included Accessories |
Connection cable 60 cm (1.97 ft) length |
| Dimensions and Weight | φ 36 mm (1.42 in) × 140 mm (5.51 in) |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
