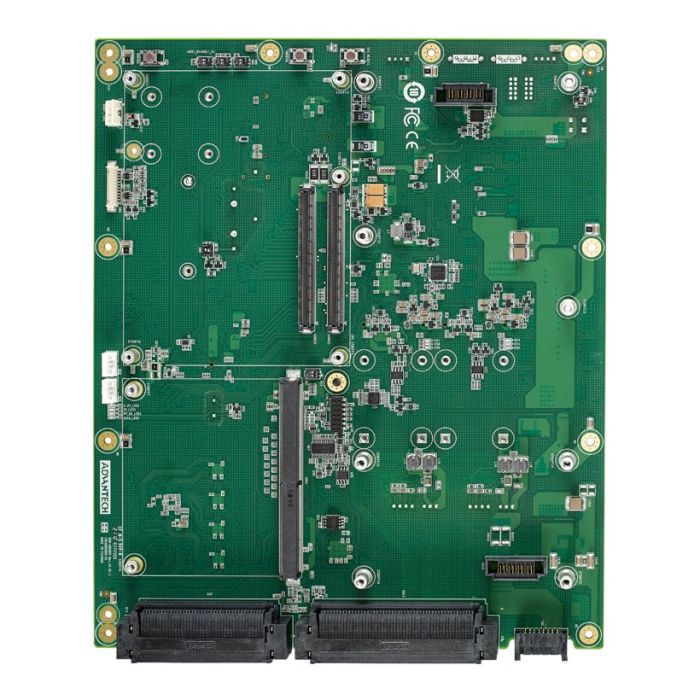

SOM-AB5800
SOM-AB5800
Advantech
MIL-Grade Application Board for COM Express Type 6 Pin-out Modules
Advantech Application Board is application-oriented development board which provides a schematic reference to reduce design effort at the development stage.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Form Factor | Advantech COM Express Basic Modules / Compact Modules |
| Supply Voltage |
Vin: +16~48V (w/o Power Board SOM-EA8710)
Vin: +16~48V (w/ Power Board SOM-EA8710, nominal volotage +28V) |
| USB 3.0 | 2 USB 3.0/USB 2.0 |
| USB 2.0 | 2 USB 2.0 |
| COM Port |
2 RS-232 (From COMe)
4 RS-232/422/485 (from PCIe to UART bridge) |
| Mini PCIe |
2 mini-PCIe/ Acropack (port 2 shared USB 2.0 interface through USB HUB)
1 mini-PCIe/ mSATA |
| Audio | 1 Audio input/ output |
| VGA | 1 pin header (from COMe module) |
| LCD | 1 LVDS (single channel) |
| DP++ | 4 DP (from MXM slot) |
| M.2 B Key | 1 M.2 2242/ 2280 (B Key, SATA/PCIe) |
| SMBus | Yes |
| I²C Bus | Yes |
| Gigabit Ethernet | 2 Gigan LAN (10/100/1000) |
| SATA | 2 SATA |
| GPIO | 8 GPIO with 8 bits (4 in/ 4 out w/ +3.3 & +5V selectable) |
| Rapid Shutdown | 1 |
| Power Type | ATX: Vin, VSB; AT: Vin or Vdc |
| DDI |
1 DDI (port 0)
2 DDI (port 1, 2) |
| Storage Temperature | -40 ~ 85° C (-40 ~ 185° F) |
| Operating Temperature | -40 ~ 85° C (-40 ~ 185° F) |
| Product Type | Application Board |
| Humidity |
Operating: 40 °C @ 95% relative humidity, non-condensing
Storage: 60 °C @ 95% relative humidity, non-condensing |
| Dimensions | 215 x 260 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
