T3H-20G
T3H-20G
Marki Microwave
Two-Tone-Terminator Mixer
The T3H-20G is a high performance mixer featuring LO/RF from 10 MHz to 20 GHz and IF from 10 MHz to 18 GHz. As with all T3 mixers, this mixer offers unparalleled nonlinear performance in terms of IIP3, P1dB, and spurious performance with a flexible LO drive requirement from +15 dBm to +25 dBm.

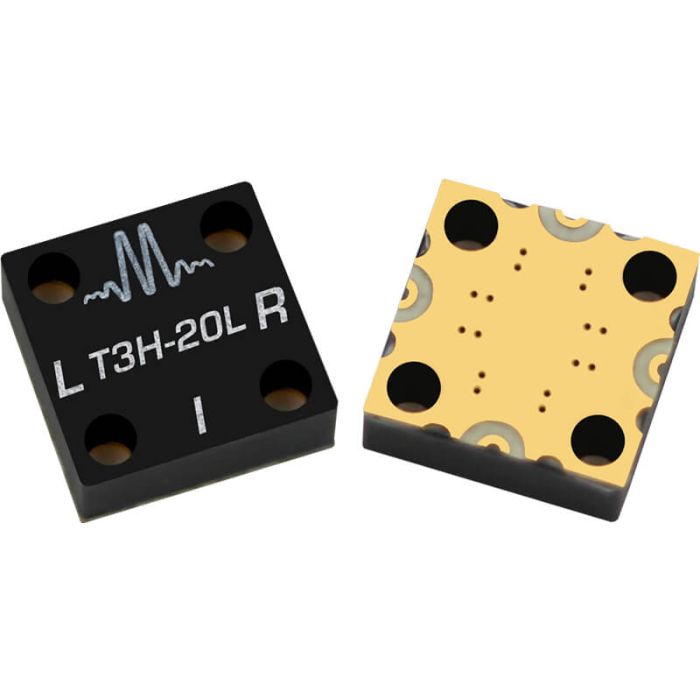

The T3H-20G is offered in connectorised, surface mount, and drop-in style packaging, suitable for any type of system level integration. The T3H-20G is a form-fit-function replacement for the obsolete T3H-20, built using GaAs diodes instead of Si.
The ADM1-0026PA and ADM2-0035PA are recommended as the ideal LO driver for the T3H-20G
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| IF (GHz) | 0.01 to 18 |
| LO Drive (dBm) | +15 to +25 |
| Conversion Loss (dB) | 9.5 |
| Isolations L-R (dB) | 30 |
| RF/LO (GHz) Low | 0.01 |
| RF/LO (GHz) High | 20 |
| IIP3 (dBm) | +30 |
| Product Type | T3 Mixer |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
